SP14SLA 14 mm Sliding Lead Screw Linear Actuator
Frame size
14 mm
Maximum thrust
Up to 19 N
Lead range
0.3–8 mm
Compact 14 mm sliding lead screw linear actuator with up to 19 N thrust, 0.3–8 mm lead options, external-drive, through-shaft and K-type…
Product category
Sliding Lead Screw Linear Actuator
Sliding lead screw linear actuators for compact linear motion applications. Review available frame sizes, lead options and product-level technical data.
Available Products

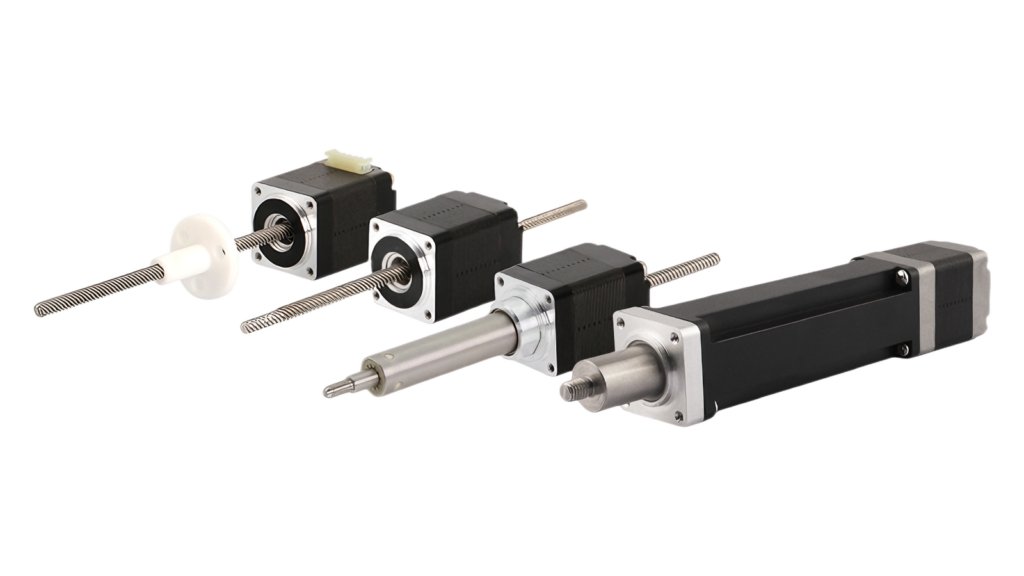

SP20SLA 20 mm Sliding Lead Screw Linear Actuator
Frame size
20 mm
Maximum thrust
Up to 70 N
Lead range
0.3–8 mm
20 mm sliding lead screw linear actuator with up to 70 N thrust, 0.3–8 mm lead options, four mechanical configurations, encoder, brake…
SP28SLA 28 mm Sliding Lead Screw Linear Actuator
Frame size
28 mm
Maximum thrust
Up to 150 N
Lead range
0.3175–10.16 mm
28 mm sliding lead screw linear actuator with up to 150 N thrust, 0.3175–10.16 mm lead options, four mechanical configurations, encoder and…
SP35SLA 35 mm Sliding Lead Screw Linear Actuator
Frame size
35 mm
Maximum thrust
Up to 300 N
Lead range
0.6096–25.4 mm
35 mm sliding lead screw linear actuator with up to 300 N thrust, 0.6096–25.4 mm lead options, four mechanical configurations, encoder and…
SP42SLA 42 mm Sliding Lead Screw Linear Actuator
Frame size
42 mm
Maximum thrust
Up to 600 N
Lead range
0.6096–25.4 mm
A configurable 42 mm sliding lead screw linear actuator delivering up to 600 N thrust with multiple lead, encoder, brake and mechanical…
SP57SLA 57 mm Sliding Lead Screw Linear Actuator
Frame size
57 mm
Maximum thrust
Up to 1300 N
Lead range
0.635–25.4 mm
A configurable 57 mm sliding lead screw linear actuator delivering up to 1300 N thrust with multiple lead, encoder, brake and mechanical…
SP60SLA 60 mm Sliding Lead Screw Linear Actuator
Frame size
60 mm
Maximum thrust
Up to 1560 N
Lead range
0.635–25.4 mm
A configurable 60 mm sliding lead screw linear actuator delivering up to 1560 N thrust with multiple lead, encoder, brake and mechanical…
SP86SLA 86 mm Sliding Lead Screw Linear Actuator
Frame size
86 mm
Maximum thrust
Up to 2270 N
Lead range
2.54–25.4 mm
86 mm sliding lead screw linear actuator with up to 2270 N thrust, a 15.875 mm screw and 2.54–25.4 mm lead options…
Choose by application requirements
Start with the operating environment and motion requirement, then confirm mechanical fit and electrical integration against the product-level technical data.
Operating environment
Define vacuum level, temperature range, cleanliness and other environmental constraints.
Motion requirement
Confirm load, speed, torque, travel, positioning accuracy and duty cycle.
Mechanical integration
Match frame size, mounting interface, shaft or screw configuration and available installation space.
Electrical interface
Review supply, current, feedback, drive method and communication requirements before selection.
