Precision Motion Products

Explore motors, actuators, drives and integrated motion solutions engineered for compact installation, dependable control and application-specific performance.

Explore Our Product Portfolio

SPYCSV110 110 mm hollow shaft servo motor with 20 mm through bore

SPYCSV110 110 mm Hollow Shaft Servo Motor

Frame Size
110 mm
Rated Power
800 / 1500 W
Rated Torque
5 / 5.7 N·m
Through Bore
Ø20 mm
SPYCSV110 is a 110 mm hollow shaft servo motor with a Ø20 mm through bore. Choose 800 W at 48 VDC with 5 N·m rated torque, or 1500 W at 220 VAC with 5.7 N·m; feedback and brake options are confirmed by configuration.
SPYCSV80 80 mm hollow shaft servo motor

SPYCSV80 80 mm Hollow Shaft Servo Motor

Frame Size
80 mm
Rated Power
750 W
Rated Torque
2.4 N·m
Through Bore
Ø10 mm
SPYCSV80 is an 80 mm hollow shaft servo motor with a Ø10 mm through bore, 750 W rated output and 2.4 N·m rated torque. Choose 48 VDC, 220 VAC or 380 VAC windings, with feedback and brake options confirmed by configuration.
SPYCSV60 60 mm hollow shaft servo motor

SPYCSV60 60 mm Hollow Shaft Servo Motor

Frame Size
60 mm
Rated Power
200–600 W
Rated Torque
0.64–1.91 N·m
Through Bore
Ø10 / Ø12 mm (by configuration)
SPYCSV60 hollow shaft servo motors combine a 60 mm nominal frame with 200–600 W output, 0.64–1.91 N·m rated torque and 48 VDC or 220 VAC winding options. Through-bore and feedback configurations are selected to match the rotary axis.
SPYCSV40 40 mm hollow shaft servo motor product view

SPYCSV40 40 mm Hollow Shaft Servo Motor

Frame Size
40 mm
Rated Power
100 W
Rated Torque
0.32 N·m
Through Bore
Ø4.2 mm
SPYCSV40 combines a 40 mm frame and Ø4.2 mm axial through bore with 100 W servo output, 24/48 VDC windings and selectable feedback for compact rotary assemblies.
SP vacuum five-phase stepper motor series, 28 to 60 mm

SP Vacuum Five-Phase Stepper Motor Series

Frame sizes
28 / 42 / 60 mm
Step angle
0.72°
Vacuum level
Down to 1 × 10⁻⁵ Pa
SP vacuum five-phase stepper motor series combines 0.72° step resolution with 28, 42 and 60 mm frame options. Custom HV configurations are available for operating pressures down to 1 × 10⁻⁵ Pa.
sphyli vacuum linear motor main

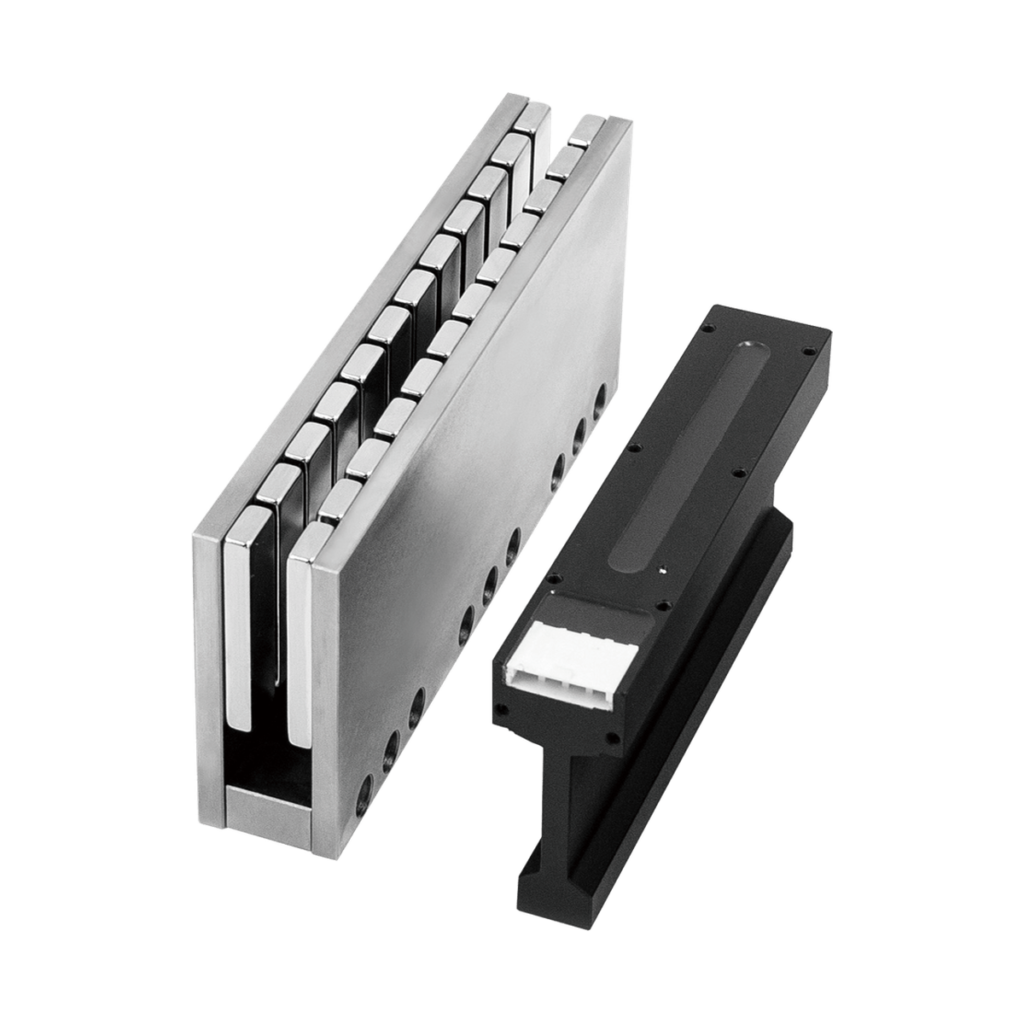

SPHYLI Series Vacuum Linear Motor

Peak force
29–2,100 N
Continuous force
14–490 N
Vacuum level
1 × 10⁻⁷ Torr
Models
25 configurations
SPHYLI series vacuum linear motors provide direct-drive motion for vacuum systems using specialized insulation, low-outgassing materials and suitable surface treatment. Six motor families cover 29–2,100 N peak force and 14–490 N continuous force, with application-specific validation required.
SPJGMP8075D 750 W integrated servo motor

SPJGMP8075D 750 W Integrated Servo Motor

Rated Power
750 W
Rated Torque
2.4 N·m
Communication
EtherCAT / CANopen / RS485
SPJGMP8075D is a 750 W, 48 VDC integrated servo motor with 2.4 N·m rated torque, 3000 rpm rated speed and selectable EtherCAT, CANopen or RS485 communication.
SPJGMP6040D 400 W integrated servo motor

SPJGMP6040D 400 W Integrated Servo Motor

Rated Power
400 W
Rated Torque
1.27 N·m
Communication
EtherCAT / CANopen / RS485
SPJGMP6040D is a 400 W, 48 VDC integrated servo motor with 1.27 N·m rated torque, 3000 rpm rated speed and selectable EtherCAT, CANopen or RS485 communication.

Find the Right Motion Solution

Share your load, speed, travel, accuracy, duty cycle and environment requirements. Our application engineers will help you evaluate and select the right configuration.

Start with your application requirements. Share your load, speed, travel, accuracy, duty cycle and operating environment. Our engineers will recommend a practical motor, actuator and drive configuration.
Talk to an Engineer
Validate the critical operating points. We review mechanical load, motion profile, thermal limits, interfaces and installation constraints, then support samples and prototype testing before production.
Discuss Your Application

Why Engineers Choose Spotlight Motor

Precision

Application-matched motors and actuators support repeatable positioning, stable low-speed control and consistent production performance.

Compact Integration

Compact mechanics, integrated drives and configurable interfaces reduce installation space, wiring and commissioning effort.

Reliable Operation

Components are selected and validated around real duty cycles, thermal limits and environmental demands for dependable long-term operation.

Engineering clarity for confident motion system decisions.

Engineering support from selection to validation

We connect product selection, mechanical integration, drive configuration and application testing in one practical engineering workflow.

Application-ready technical data

Access dimensions, electrical parameters, interface definitions and available CAD resources for efficient system design.

Direct application engineering

Work directly with engineers to match motor, actuator and drive configurations to load, speed, travel, accuracy and duty-cycle requirements.

Flexible system integration

Choose from configurable mechanical, electrical and communication options to fit your machine architecture.

Performance validation

Confirm critical operating points through samples, prototype testing and application review before production.

Motion solutions built around your application

Spotlight Motor develops and supplies compact motors, linear actuators, drive systems and integrated motion solutions for industrial automation, medical instruments, semiconductor equipment and demanding scientific applications. Our focus is practical: reliable performance, clear engineering data and responsive collaboration from concept through production.
