SP14BSA 14 mm Ball Screw Linear Actuator
Frame size
14 mm
Rated dynamic load
420–560 N
Axial clearance
≤0.02 mm
Compact 14 mm external-drive ball screw linear actuator with 0.005 or 0.01 mm travel per step, C7 accuracy and axial clearance of…
Product category
Ball Screw Linear Actuator
Ball screw linear actuators for compact precision motion applications. Review available frame sizes and product-level technical data.
Available Products
SP20BSA 20 mm Ball Screw Linear Actuator
Frame size
20 mm
Maximum thrust
Up to 45 N
Lead range
1–2 mm
SP20BSA is a compact 20 mm external-drive ball screw linear actuator for precision OEM motion systems. It supports 1 mm and 2…
SP28BSA 28 mm Ball Screw Linear Actuator
Frame size
28 mm
Maximum thrust
Up to 140 N
Lead range
1–6 mm
SP28BSA 28 mm ball screw linear actuator provides 1, 2 and 6 mm lead options, C7 accuracy and recommended load capacity up…

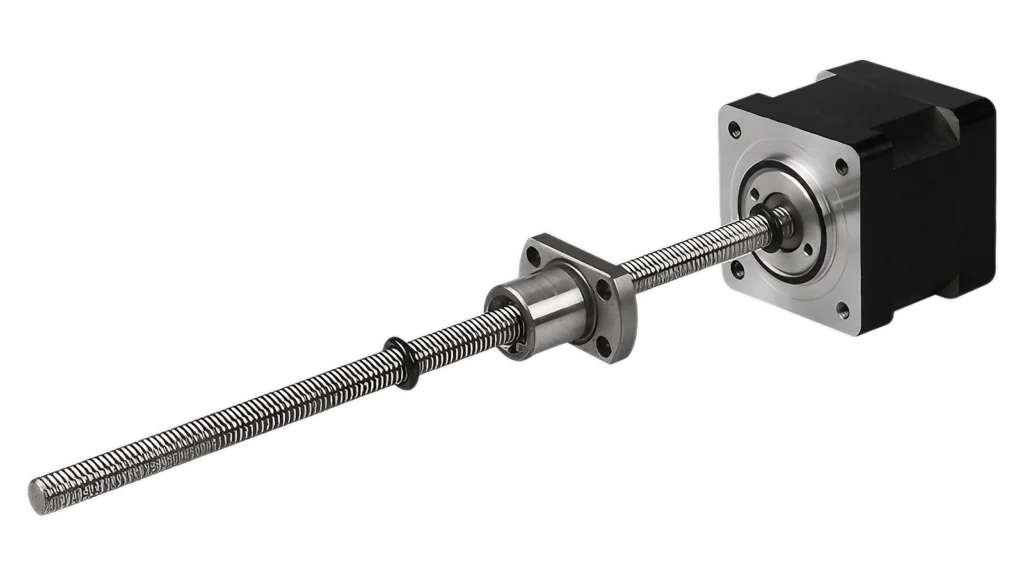

SP35BSA 35 mm Ball Screw Linear Actuator
Frame size
35 mm
Maximum thrust
Up to 230 N
Lead range
1–12 mm
35 mm external-drive ball screw linear actuator with C7 screw options, 1–12 mm leads, 0.005–0.06 mm travel per 1.8° step, and a…

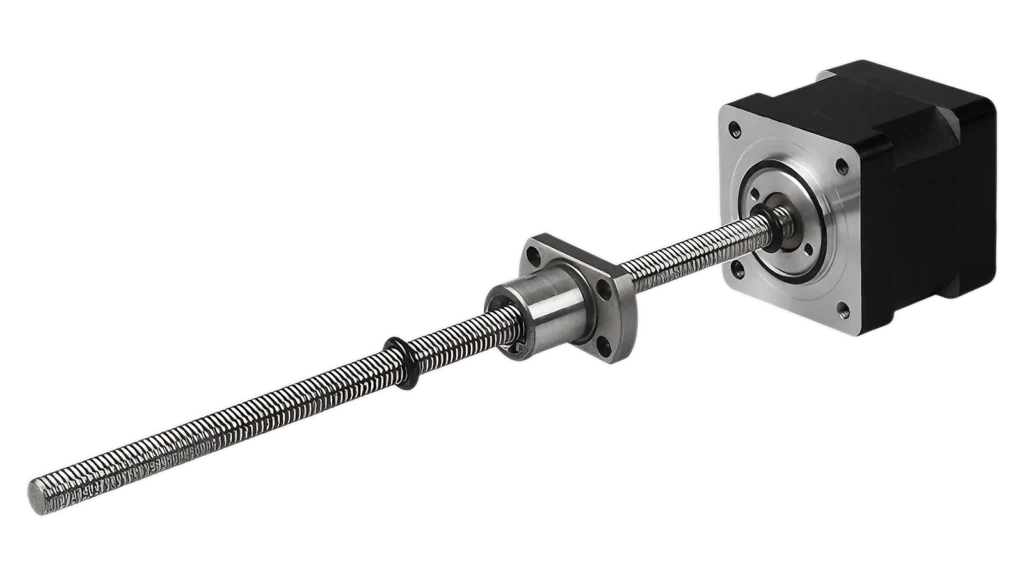

SP42BSA 42 mm Ball Screw Linear Actuator
Frame size
42 mm
Maximum thrust
Up to 230 N
Lead range
1-10 mm
External-drive 42 mm ball screw linear actuator with C7 screw options, 1-10 mm leads, selectable feedback and a recommended load up to…
SP57BSA 57 mm Ball Screw Linear Actuator
Frame size
57 mm
Maximum thrust
Up to 910 N
Lead range
2–20 mm
SP57BSA is a 57 mm external-drive ball screw linear actuator with C7 screw options, 2–20 mm leads, four motor windings and thrust-speed…
Choose by application requirements
Start with the operating environment and motion requirement, then confirm mechanical fit and electrical integration against the product-level technical data.
Operating environment
Define vacuum level, temperature range, cleanliness and other environmental constraints.
Motion requirement
Confirm load, speed, torque, travel, positioning accuracy and duty cycle.
Mechanical integration
Match frame size, mounting interface, shaft or screw configuration and available installation space.
Electrical interface
Review supply, current, feedback, drive method and communication requirements before selection.
