Up to 2270 N
High linear thrust
The 86 mm motor platform supports demanding push-pull positioning duties when paired with the correct winding, lead and drive profile.

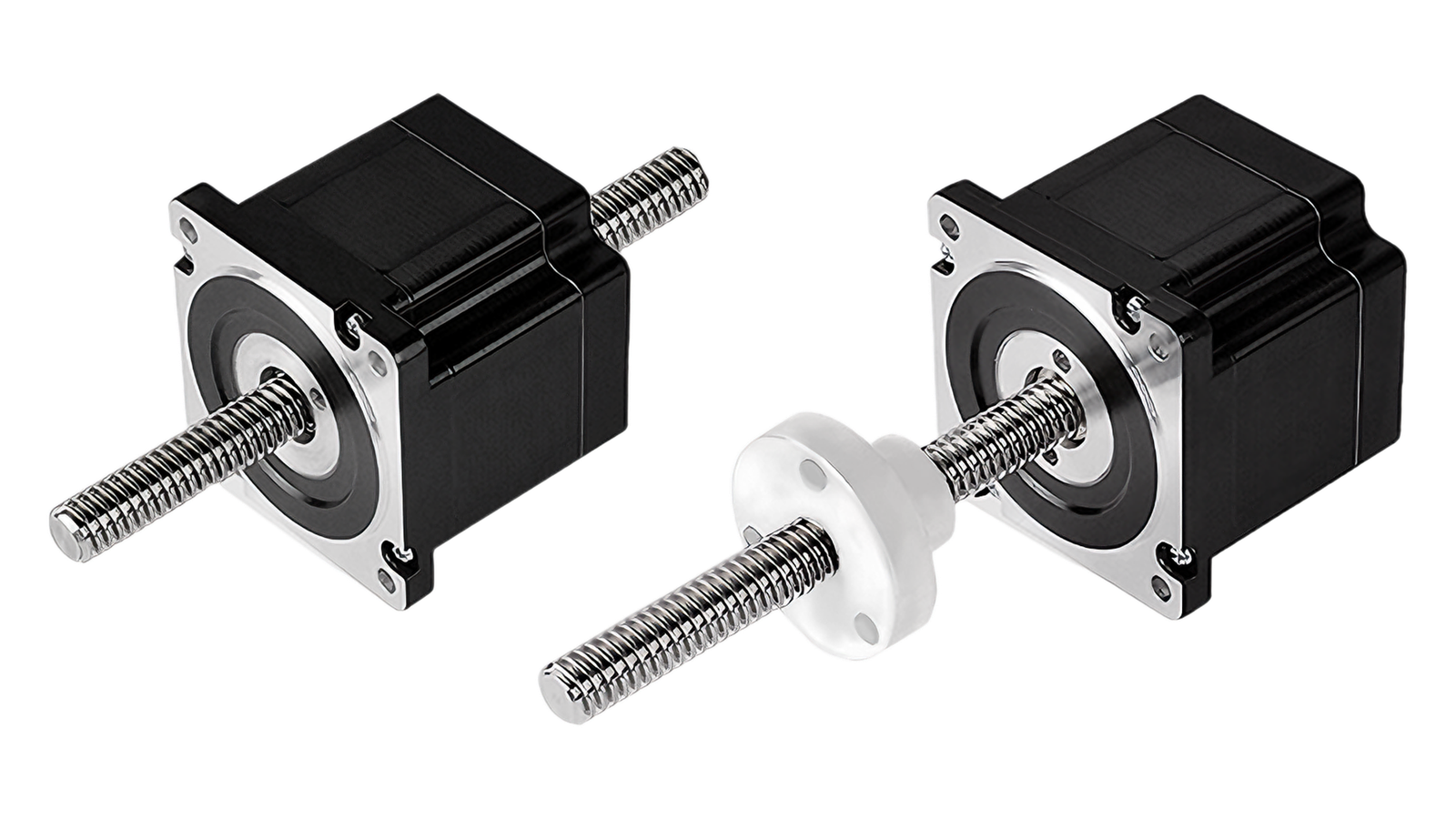

SP86SLA 86 mm Sliding Lead Screw Linear Actuator
Sliding Lead Screw Linear Actuator
86 mm sliding lead screw linear actuator with up to 2270 N thrust, a 15.875 mm screw and 2.54–25.4 mm lead options for industrial linear motion.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data
86 mm linear motion platform
High-thrust linear motion for industrial positioning systems
The SP86SLA 86 mm sliding lead screw linear actuator converts stepper-motor rotation into controlled linear travel for industrial axes that require high thrust, configurable travel per step and robust mechanical integration.
2.54–25.4 mm
Selectable screw leads
Six lead options allow engineers to balance travel per step, linear speed and axial force for the target mechanism.
2 configurations
Flexible integration
External-drive and through-shaft layouts support guided linear mechanisms with application-specific stroke and screw-end requirements.
Technical data
86 mm sliding lead screw linear actuator specifications
86 mmFrame size
Up to 2270 NMaximum thrust
2.54–25.4 mmLead range
External / ThroughConfigurations
Electrical platform
Motor electrical specifications
| Winding | Phase voltage | Phase current (RMS) | Phase resistance | Phase inductance | Weight | Leads | Motor length |
|---|---|---|---|---|---|---|---|
| A | 12 V | 1.3 A | 9.2 Ω | 71 mH | 2370 g | 4 | 76 mm |
| B | 5.1 V | 3 A | 1.9 Ω | 15 mH | 2370 g | 4 | 76 mm |
| C | 2.85 V | 5.5 A | 0.52 Ω | 4.5 mH | 2370 g | 4 | 76 mm |
Class B insulation. Rated temperature rise: 80 °C. Recommended ambient operating range: −20 to +55 °C.
Linear travel selection
Available screw leads and travel per step
| Screw Ø (in) | Screw Ø (mm) | Lead (in) | Lead (mm) | Lead code | Travel at 1.8° (mm) |
|---|---|---|---|---|---|
| 0.625 | 15.875 | 0.1 | 2.54 | K | 0.0127 |
| 0.625 | 15.875 | 0.125 | 3.175 | L | 0.0159 |
| 0.625 | 15.875 | 0.2 | 5.08 | R | 0.0254 |
| 0.625 | 15.875 | 0.25 | 6.35 | S | 0.0318 |
| 0.625 | 15.875 | 0.5 | 12.7 | Y | 0.0635 |
| 0.625 | 15.875 | 1 | 25.4 | Z | 0.127 |
Travel per step values are based on a 1.8° motor step angle. Confirm the selected lead, stroke, screw support and load guidance before release.
Mechanical platform
Configuration summary
| Configuration | Motor length | Screw diameter | Integration note |
|---|---|---|---|
| External drive | 76 mm | 15.875 mm | The lead screw translates while the nut is supported and guided by the application. |
| Through shaft | 76 mm | 15.875 mm | The screw passes through the motor for mechanisms requiring a continuous guided axis. |
Feedback option

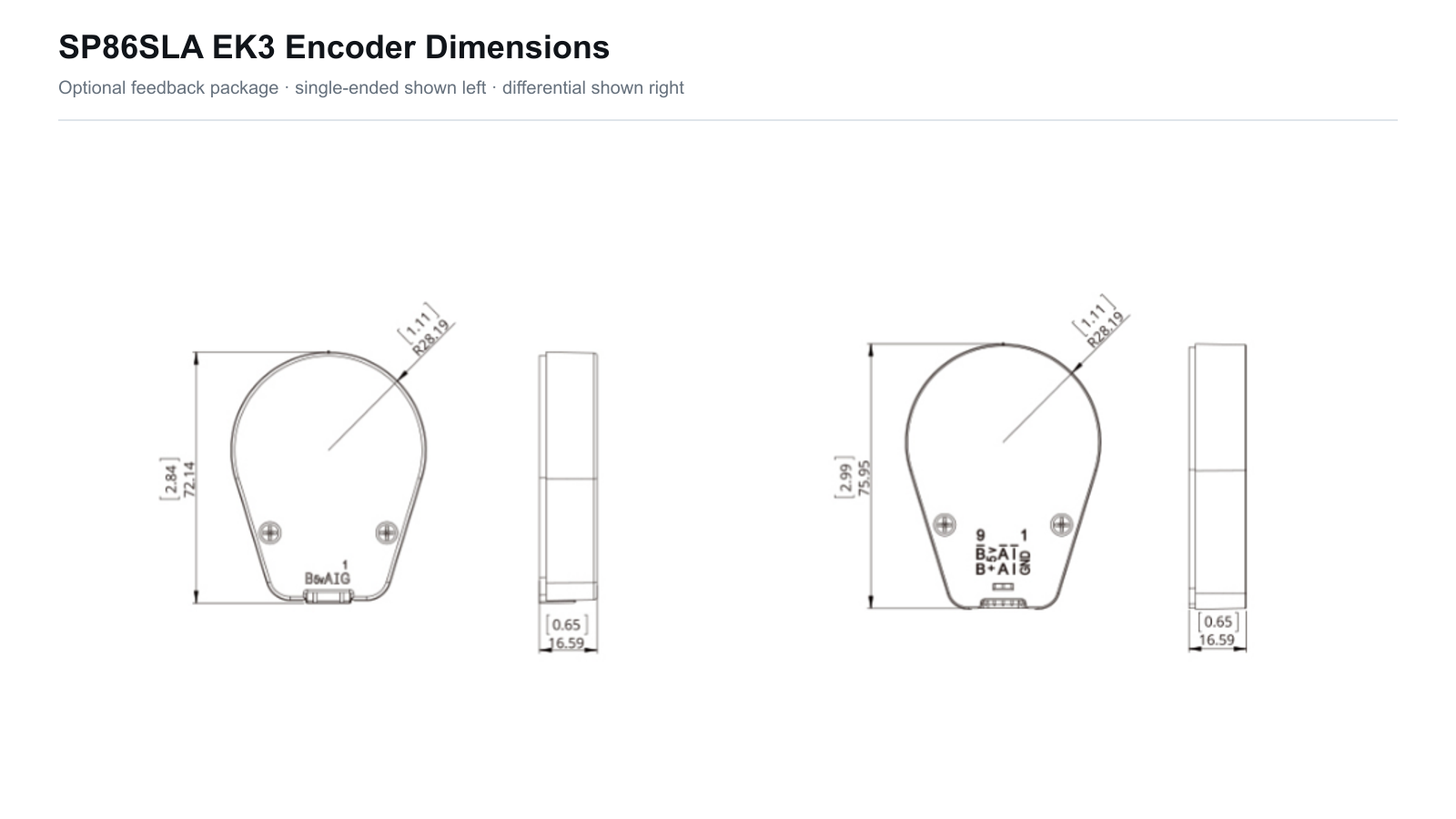

EK3 encoder resolution selection
| Resolution | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Single-ended code | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | — | — | — | — |
| Differential code | — | A | B | C | D | E | F | G | H | I | J | K | L | M |
Holding option

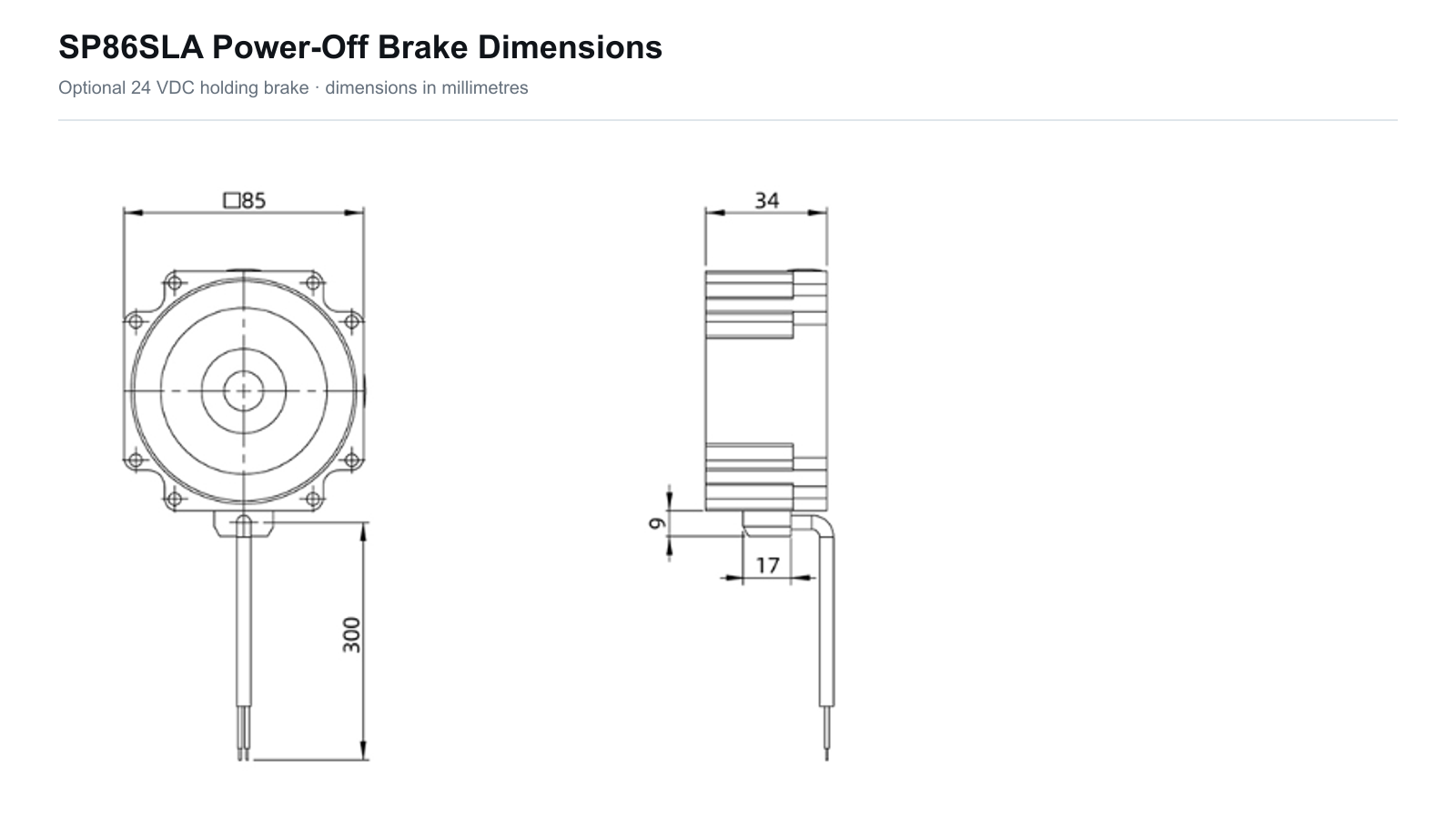

Optional power-off brake
| Parameter | Value |
|---|---|
| Series | 86 series |
| Rated voltage | 24 VDC ±5% |
| Resistance | 69 Ω ±10% |
| Power | 12 W |
| Static torque | > 6 N·m |
| Insulation class | Class B |
| Insulation resistance | > 100 MΩ at 500 VDC |
| Dielectric strength | 1000 VAC for 1 s |
| Armature pull-in time | 50 ms |
| Armature release time | 50 ms |
| Rotational clearance | 1° |
| Emergency braking | 200 cycles |
| Mechanical life | 500,000 cycles |
| Noise | < 60 dB |
The brake is intended to hold a stationary axis after power removal. Emergency-braking limits and thermal duty must be reviewed for the application.

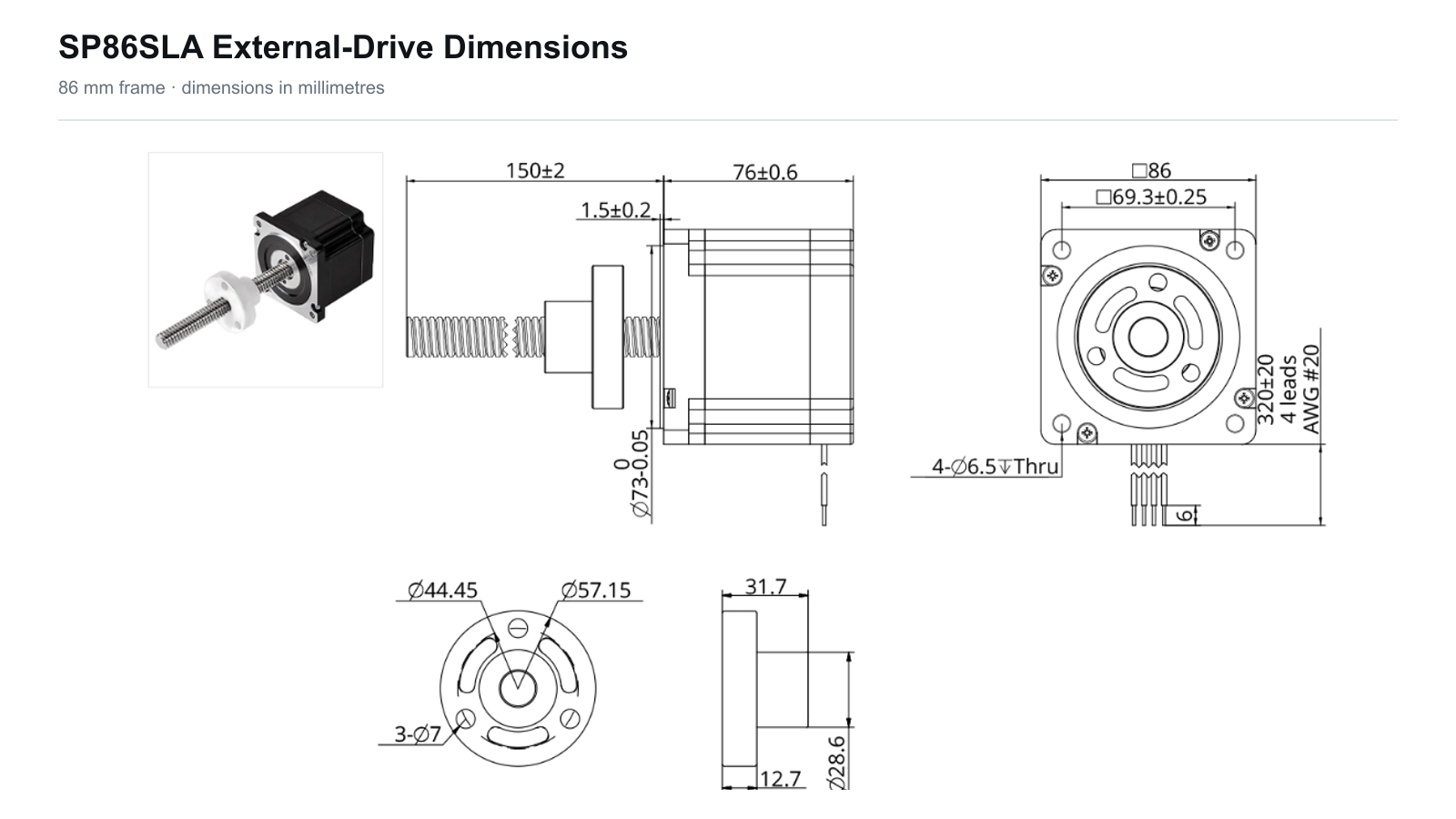

Mechanical drawings

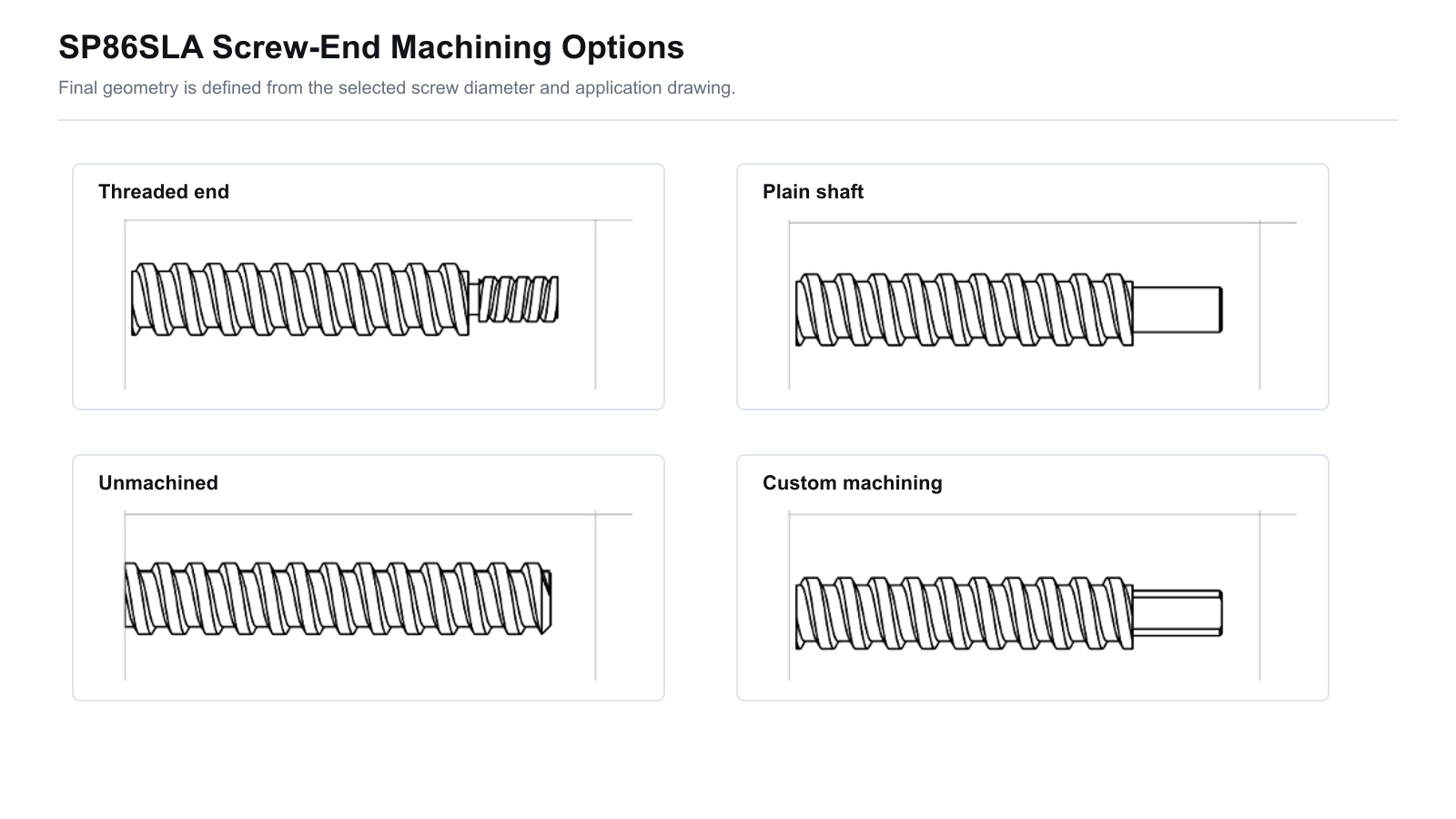

Dimensions and screw-end options
Performance reference

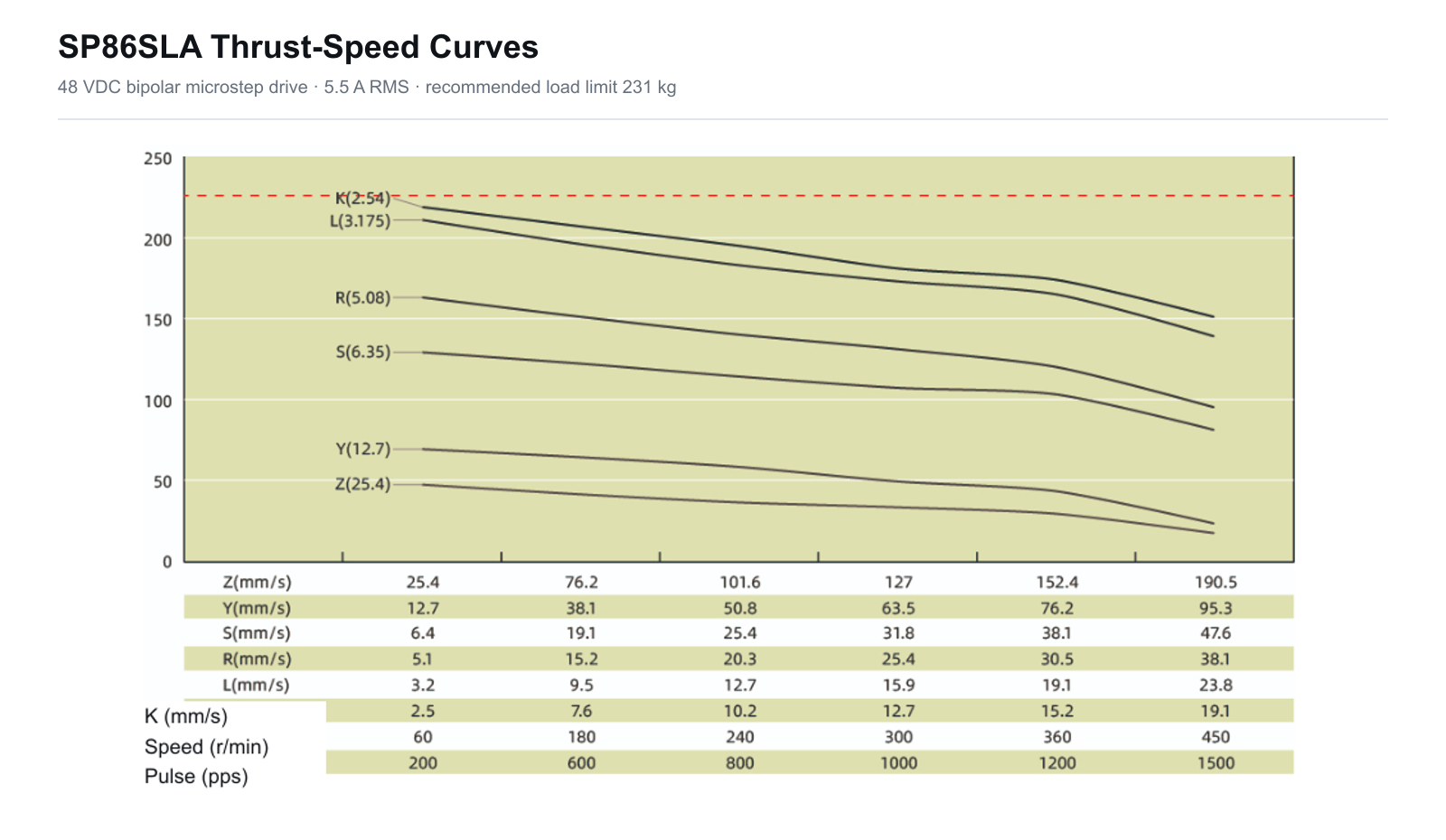

Thrust-speed curves
The reference test used a DS-OLS8-FPD bipolar constant-current chopper microstep drive. Recommended load limit: 231 kg. Actual performance depends on lead, drive settings, acceleration, screw support and duty cycle.
Application-ready integration
Configure the complete linear-motion assembly
Lead choice establishes the basic balance between speed, resolution and force. Reliable machine performance also depends on winding selection, drive current, acceleration, external guidance, screw support and operating duty.
- External-drive and through-shaft configurations
- Six lead options from 2.54 to 25.4 mm
- Optional EK3 encoder and power-off brake
- Application-specific screw length and end machining
Typical applications
High-thrust positioning for industrial equipment
SP86SLA is intended for guided axes where high axial force, configurable linear travel and robust mechanical packaging are required.
Industrial automation
Heavy-duty positioning, transfer mechanisms, tooling adjustment and controlled push-pull axes.
Packaging equipment
Format adjustment, sealing mechanisms, product handling and repeatable machine setup.
Assembly systems
Pressing, clamping, fixture adjustment and component positioning in automated production cells.
Test and inspection
Load application, fixture positioning and guided motion for industrial measurement equipment.
Selection guidance
Engineering information required for configuration
Provide the required stroke, thrust, target speed, duty cycle, installation orientation, supply voltage, positioning resolution and environmental conditions for selection support.
Frame86 mm
Motor length76 mm
Screw diameter15.875 mm / 0.625 in
Lead range2.54–25.4 mm
OptionsEK3 encoder / power-off brake / custom machining
Configure SP86SLA
Discuss your linear-motion requirement
Send the stroke, load, speed, duty cycle and installation constraints. Spotlight Motor can help match the winding, lead, mechanical layout and feedback package.
