SP57 57 mm Brushless DC Motor Series
Brushless DC Motor
Three verified 57 mm brushless DC motor configurations with 24 V windings, 3,000 RPM rated speed, 0.119–0.33 N·m rated torque and Hall feedback.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data
Continuous-duty brushless rotary motion
57 mm brushless DC motors for precise machine integration
The SP57 series provides three 24 V configurations with Hall feedback, 3,000 rpm rated speed and rated torque from 0.119 to 0.33 N·m. Rated output power extends from 37.4 to 103.7 W.
Hall feedback
Three Hall signals support 120° electronic commutation; an incremental encoder can be evaluated as an additional feedback option.
S1 duty
All three models use a star-connected winding, five pole pairs and documented continuous-duty operating data.
Engineering information
Technical data
Compare the electrical, mechanical and operating data for each 57 mm brushless DC motor configuration.
Electrical data
Motor and winding specification matrix
| Specification | 57ZWS50X-1 | 57ZWS63X-1 | 57ZWS75X-1 |
|---|---|---|---|
| Pole pairs | 5 | 5 | 5 |
| Line resistance | 0.958 Ω | 0.473 Ω | 0.301 Ω |
| Line inductance | 0.742 mH | 0.357 mH | 0.205 mH |
| Winding connection | Star | Star | Star |
| Insulation class | B | B | B |
| Duty cycle | S1 | S1 | S1 |
| Feedback | Hall elements | Hall elements | Hall elements |
| Commutation angle | 120° | 120° | 120° |
| Dielectric strength | 500 VAC / 1 kHz / 1 mA / 1 s | 500 VAC / 1 kHz / 1 mA / 1 s | 500 VAC / 1 kHz / 1 mA / 1 s |
| Insulation resistance | 100 MΩ at 20 °C | 100 MΩ at 20 °C | 100 MΩ at 20 °C |
| Weight | 0.42 kg | 0.65 kg | 0.87 kg |
| Torque constant | 0.054 N·m/A | 0.054 N·m/A | 0.055 N·m/A |
| Back-EMF constant, RMS | 5.66 V/krpm | 5.66 V/krpm | 5.66 V/krpm |
| Rotor inertia | 0.19 kg·cm² | 0.38 kg·cm² | 0.56 kg·cm² |
Operating data
Rated and performance specification matrix
| Specification | 57ZWS50X-1 | 57ZWS63X-1 | 57ZWS75X-1 |
|---|---|---|---|
| Rated voltage | 24 V | 24 V | 24 V |
| Rated power | 37.4 W | 69.1 W | 103.7 W |
| Rated torque | 0.119 N·m | 0.22 N·m | 0.33 N·m |
| Rated speed | 3,000 rpm | 3,000 rpm | 3,000 rpm |
| Rated current | 2.2 A | 4.1 A | 6 A |
| No-load speed | 4,000 rpm | 4,000 rpm | 4,000 rpm |
| No-load current | 0.25 A | 0.5 A | 0.75 A |
| Motor efficiency | 78% | 80% | 82% |
| Noise | <50 dB | <50 dB | <50 dB |
| Housing-to-ambient thermal resistance | 0.53 K/W | 0.27 K/W | 0.18 K/W |
| Ambient temperature | 29 °C | 29 °C | 29 °C |
| Maximum winding temperature | 77.4 °C | 77.4 °C | 77.4 °C |
| Peak torque | 0.357 N·m | 0.66 N·m | 0.99 N·m |
| Peak current | 6.6 A | 12.3 A | 18 A |
System integration
Match motor length and winding data to the required load
The SP57 series shares a 24 V, 3,000 rpm rated operating point across three motor lengths. Select the model by continuous torque, rated power, current and installation envelope.

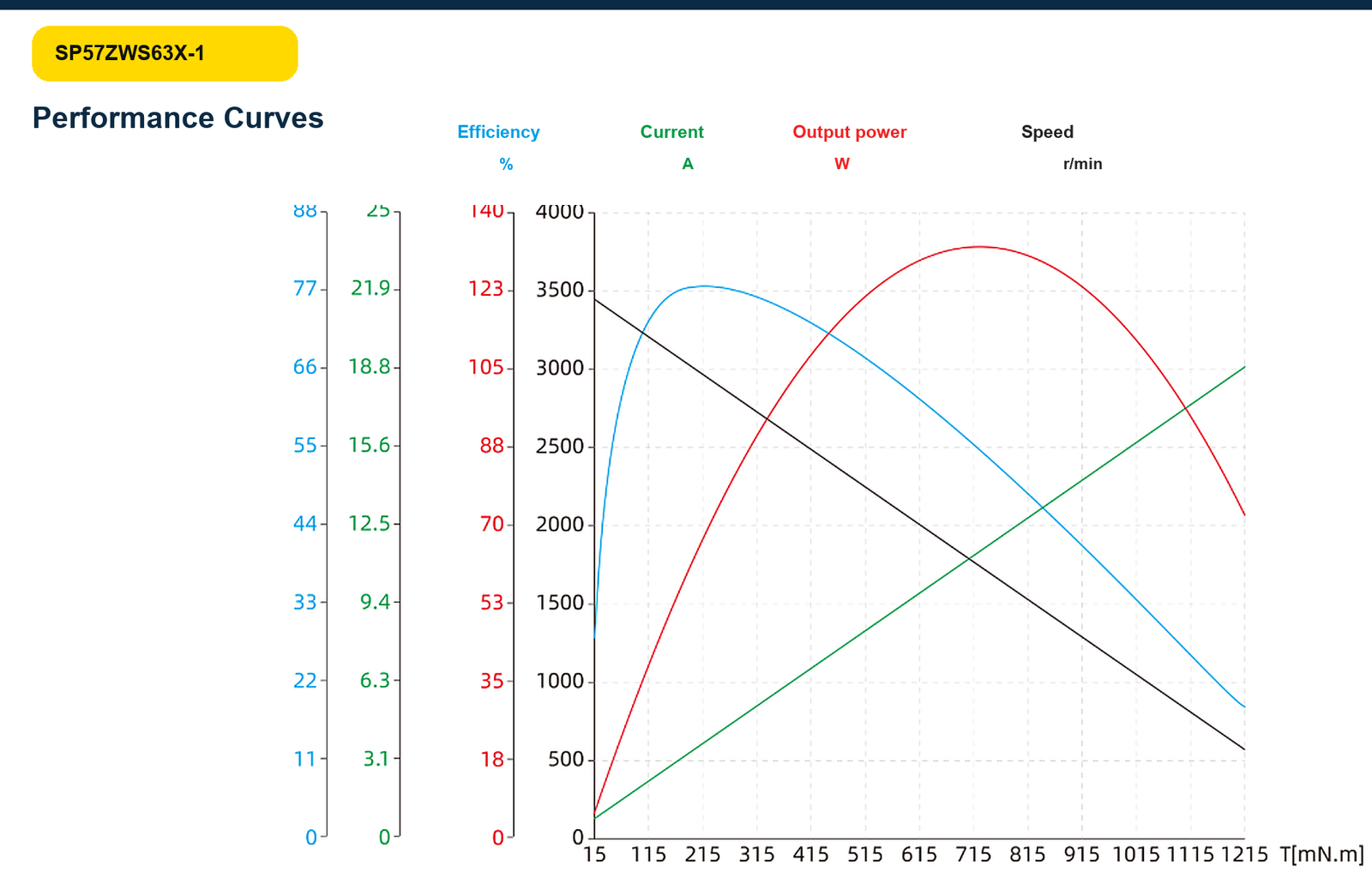

- Confirm the operating point against the model-specific performance curve
- Use a compatible 120° electronic commutation drive and Hall feedback interface
- Verify shaft load, S1 duty and thermal conditions in the final assembly
Application fields
Brushless rotary motion for equipment and automation modules
The 57 mm frame, Hall feedback and three documented torque levels support engineering selection across compact machine designs.
Industrial automation
Feeders, rollers and auxiliary rotary axes.
Robotics
Rotary joints, grippers and positioning mechanisms.
Medical equipment
Pumps, sampling modules and instrument mechanisms.
Precision instruments
Controlled rotary functions in laboratory and measurement equipment.
Discuss your 57 mm brushless DC motor requirement with our engineers.
Share the load, speed, duty cycle, drive and installation requirements for model selection and integration support.
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.
Perfection in a new dimension
Further Information
Short delivery times available for selected product configurations.
The TP+ HIGH TORQUE enables maximum torque density and maximum torsional rigidity—ideal for demanding applications with dynamic load changes and high positioning accuracy.
alpha Advanced Line gearboxes with increased durability and food-grade lubrication available.
The TP+ for coordinated pinion-rack systems for medium to high requirements. Typical areas of application in wood, plastic, and composite processing, in machining centers, or in automation.
With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our Smart Services can make your digital production faster, safer, and more efficient.
Related products
Related products
-
Brushless DC Motor

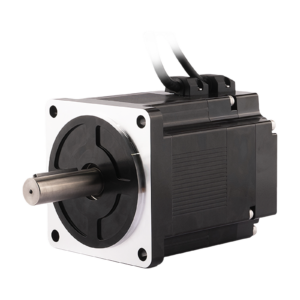

SP110 110 mm Brushless DC Motor Series
-
Brushless DC Motor

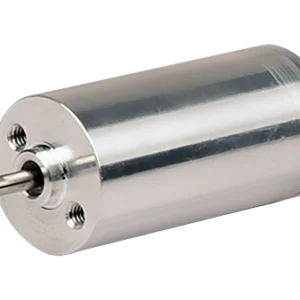

SP36ZWC72L-1 36 mm Brushless DC Motor
-
