Precise control
Closed-loop regulation supports accurate speed and position performance under changing loads.
SPSTMP42-S Integrated Servo Motor
Integrated Servo Motor (200W/400W/750W)
Integrated motor and drive solution for compact servo motion, simplified wiring and precise positioning in industrial automation.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data

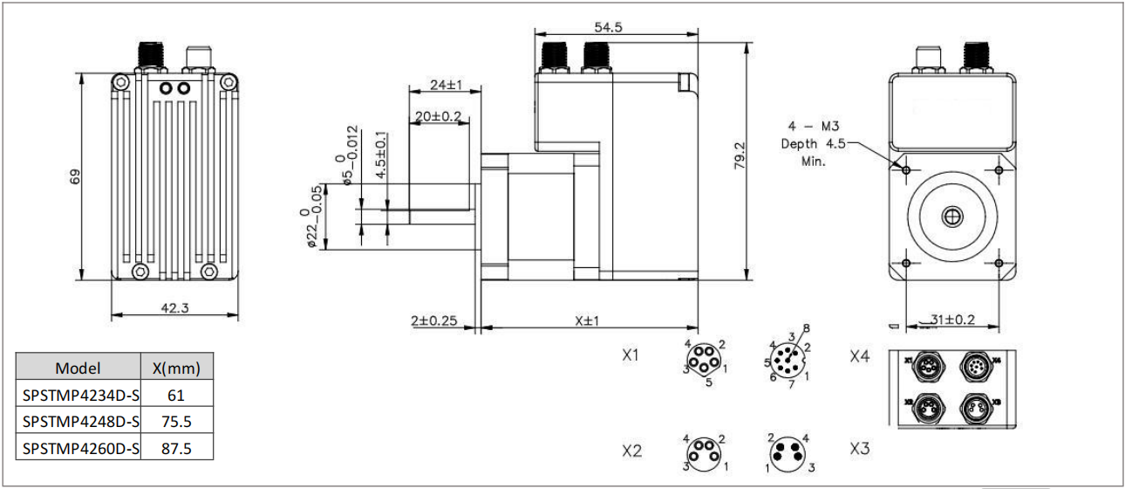

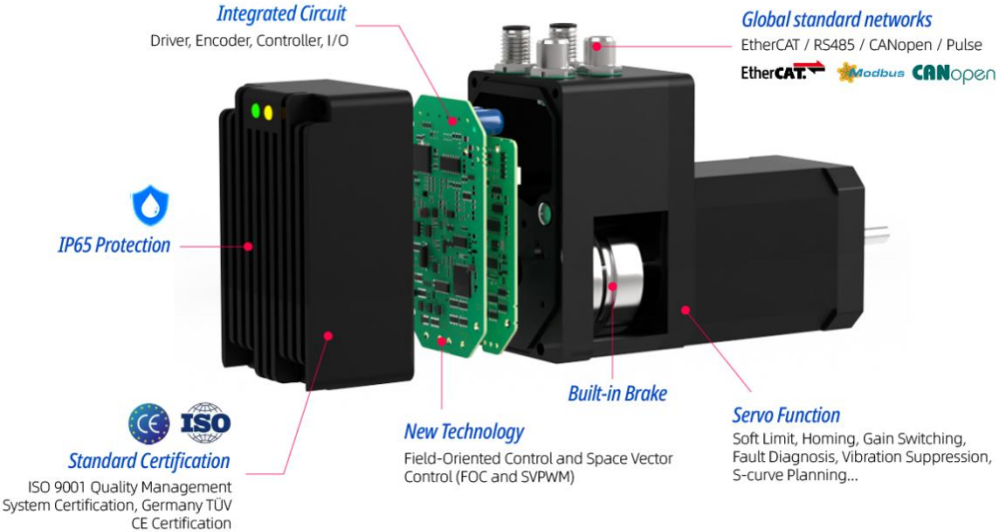

Integrated intelligent motion
Servo performance with fewer external components
Motor, drive electronics and control functions are combined to simplify machine architecture and shorten commissioning time.
Reduced wiring
Integrated electronics reduce cabinet hardware, cabling and external connection points.
Compact architecture
A self-contained motion unit fits distributed automation and space-limited machines.
Engineering information
Technical data

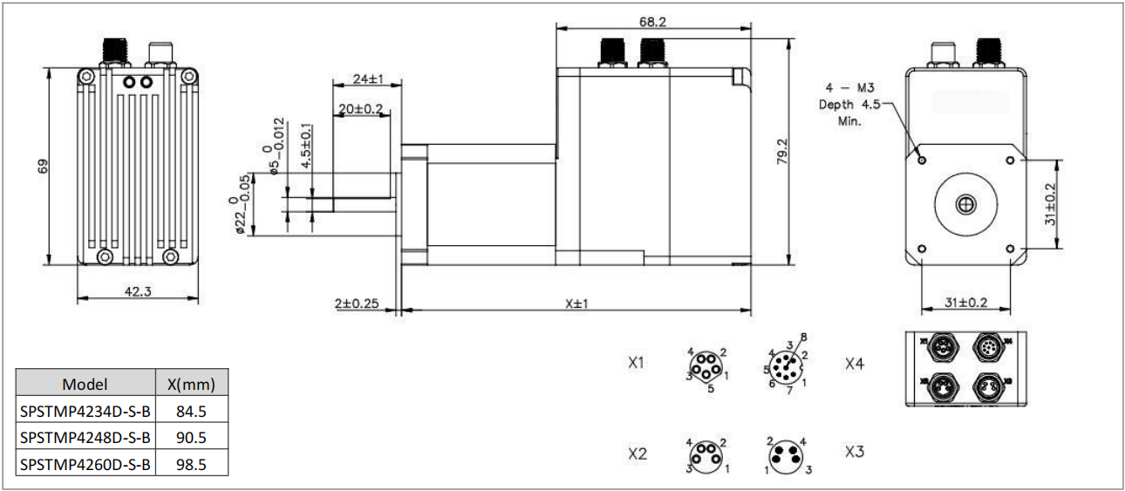

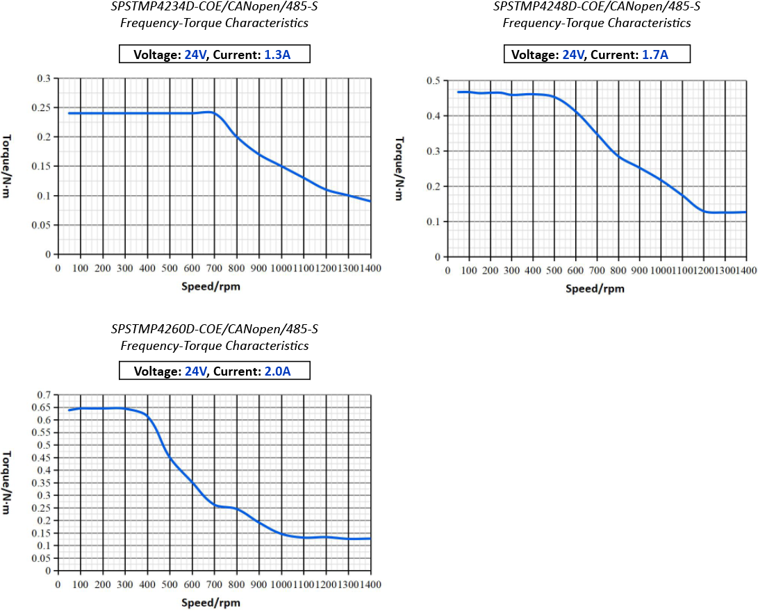

Original model-specific ratings, dimensions, curves and connection information are preserved below for engineering review.
Engineering data
Technical Specifications 1
| Specification | Content |
|---|---|
| Input voltage range | Wide voltage input range: 12~30vDc (with brake voltage range of 18~52v) |
| Encoder | 17-bit multi-turn absolute value encoder |
| Driving mode | Adopting FOc field-oriented control technology and svPwM (Space Vector Modulation technology) |
| Protection grade | IP65 |
| Braking resistor | Built-in 32w; Pin 1 of the external power cord x1 is configured, and the two cannot be used in parallel |
| Control mode | CiA402 m0de: PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| Position mode: digital quantity set control; Speed mode: digital quantity set control | |
| Quantity: 3, High-speed bidirectional optocouplers, High level: 12-24V, Low level: 0-0.5V | |
| DI (Digital input) | Maximum PwM pulse frequency: 2MHz, Configurable functions: Can be configured as switches or as |
| pulse input channels. | |
| Quantity: 1, 0 Output method: MOS open-drain output , Current: D01 – Maximum load current 2A, | |
| DO (Digital output) | ss oa o a x |
| achieved; 4. Alarm output | |
| Quantity: 1; Input method: Single-ended input; Signal type: Voltage signal resolution: 12-bit; | |
| Al (Analog Input) | Voltage: 0-10v Reference error ≤1%. Configurable functions: dead zone, filtering, bias, magnification, |
| direction | |
| Ambient temperature: 0*C to 40'C / Ambient relative humidity: 10%RH to 85%RH No condensation; | |
| Environment | Storage ambient temperature – 40°C ~ 85*C / pollution degree S02 : < 0.5ppm; H2 S: <0.1ppm ; |
| Altitude: -300m ~ 3000m | |
| Overvoltage power supply, undervoltage power supply; Overheat alarm: If the drive overheats beyond | |
| Fault alarm | the internal set temperature, an alarm will be triggered. Locked rotor alarm: The locked rotor threshold |
| can be set through parameters (closed-loop support) | |
| Features | Fault Diagnosis, Fault Reset, Soft Limit, Parameter Identification, Adjustable Parameters, Gain Switching. |
| Resonance Suppression, Low-Frequency Suppression, Parameter Save Settings, Oncable Upgrade |
Engineering data
Model Specifications
| Model | Communication | Holdingtorque | RatedCurrent | Brake | Length | Weight |
|---|---|---|---|---|---|---|
| SPSTMP4234D-S | COE/CANopen/RS485/Pulse | 0.27 N-m | 1.3A | NO | 65.5mm | 0.403kg |
| SPSTMP4248D-S | COE/CANopen/RS485/Pulse | 0.50 N-m | 1.7A | NO | 79.5mm | 0.539kg |
| SPSTMP4260D-S | COE/CANopen/RS485/Pulse | 0.69 N-m | 2.0A | NO | 91.5mm | 0.658kg |
| SPSTMP4234D-S-B | COE/CANopen/RS485/Pulse | 0.27 N-m | 1.3A | YES | 93mm | 0.595kg |
| SPSTMP4248D-S-B | COE/CANopen/RS485/Pulse | 0.50 N-m | 1.7A | YES | 107mm | 0.730kg |
| SPSTMP4260D-S-B | COE/CANopen/RS485/Pulse | 0.69N-m | 2.0A | YES | 119mm | 0.850kg |
Always confirm the final operating point and installation conditions with Spotlight Motor engineering support.
System integration
Simplify distributed servo-axis design
Use the product drawings and technical sheets to confirm supply, I/O, communication, feedback and mechanical interfaces.
- Match rated torque and speed to the machine duty cycle

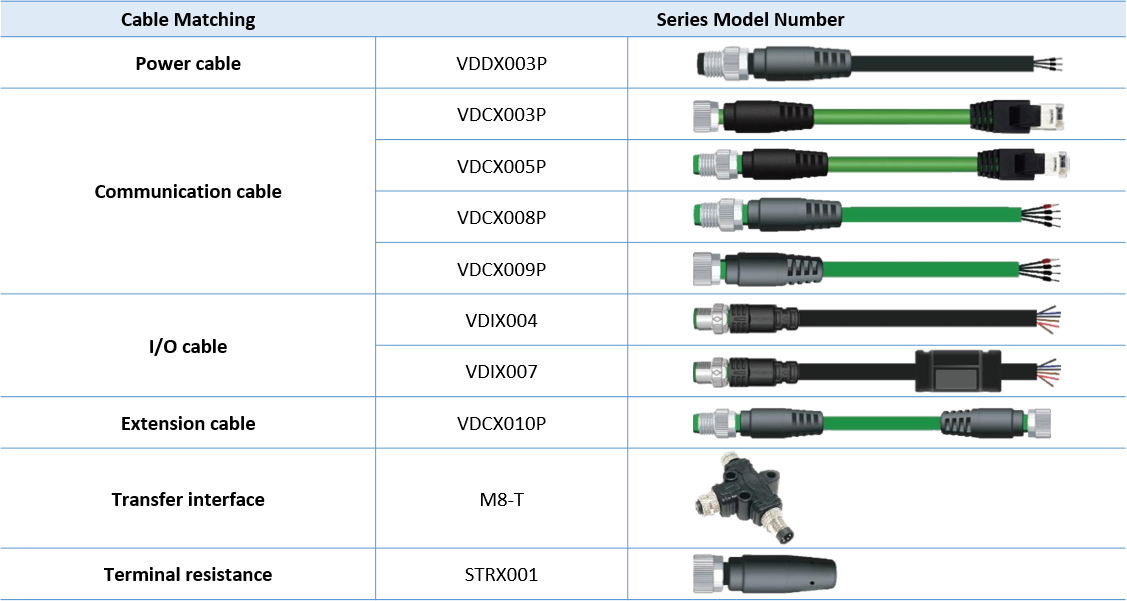

- Plan power, I/O and communication connections
- Confirm mounting geometry and thermal conditions
Application fields
Designed for compact industrial automation
A strong fit for machinery that needs precise servo motion without a large control cabinet footprint.
Packaging machinery
Indexing, feeding and synchronized auxiliary axes.
Electronics assembly
Placement, transfer and controlled process motion.
Inspection systems
Camera, sensor and measurement positioning.
Compact robotics
Distributed joints, end effectors and lightweight axes.
Discuss your SPSTMP42-S requirement with our engineers.
Share your load, speed, duty cycle, controller and installation requirements for model selection and integration support.
