Precise control
Integrated regulation supports accurate speed and position behavior.
SPBLS57 Integrated BLDC Servo Motor
Integrated Servo Motor (200W/400W/750W)
Integrated motor and drive solution for compact motion control, simplified wiring and precise positioning in industrial automation.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data

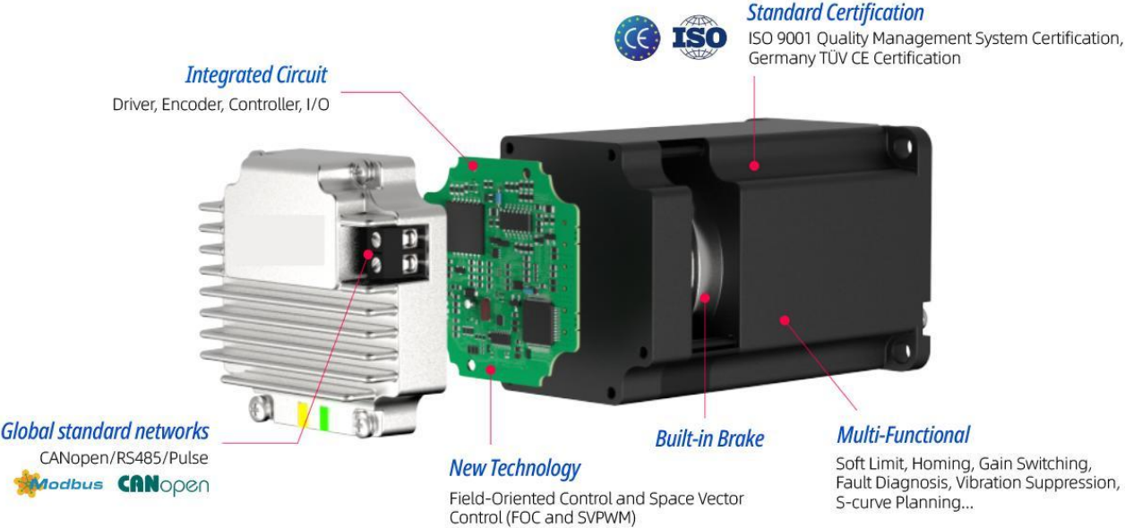

Integrated intelligent motion
More motion capability with fewer external components
Motor, drive electronics and control functions are combined to simplify machine architecture and commissioning.
Reduced wiring
Fewer cabinet components and external connection points simplify installation.
Compact architecture
A self-contained motion unit suits distributed automation.
Engineering information
Technical data

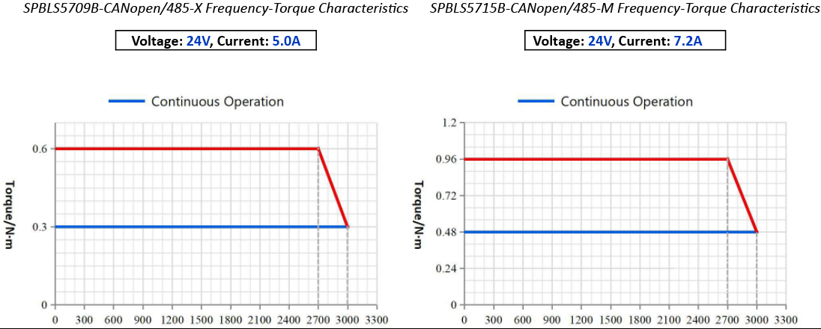

Original model-specific ratings, dimensions, curves and connection information are preserved below for engineering review.
Engineering data
Lead & Wiring Definition
| Specification | Content |
|---|---|
| Inputvoltagerange | Wide voltage input range: 16~52vDC |
| Encoder | Integrated 2500-cable magnetic encoder |
| Brake resistor | Built-in + external (cannot be used in parallel). Built-in 16w, external braking resistor. The external |
| brake function can be enabled by configuring the EXTERNAL _BRAKE physical terminal. | |
| Driving mode | Adopting FOc field-oriented control technology and SvPwM (Space Vector Modulation technology) |
| Control mode | CiA402 m0de: PP, VM, PV, PT, HM, IP, CSP, CSV, CST |
| modes: Position mode, Speed mode, Torque mode | |
| Quantity: 3 units; equipped with high-speed bidirectional optocouplers; can be connected to an | |
| DI (Digital input) | external DC power supply: 12-24V; supports a maximum pulse frequency of 2MHz. Configurable |
| functions: Can be used as a switch; can be used as a pulse input channel. | |
| Quantity: 1 unit; Mos open-drain output; maximum load current 50omA, maximum voltage 52v. | |
| DO (Digital output) | Configurable functions: 1. General-purpose D0 port; 2. Motor run/stop; 3. Target reached; 4. Alarm |
| output. | |
| Quantity: 1 unit; Input method: Single-ended input; Signal type: Voltage signal; | |
| Al (Analog Input) | Resolution: 12-bit; Voltage: 0-10v; |
| Accuracy: Reference error ≤1%. Configurable functions: Dead zone, filtering, bias, scaling, direction. | |
| Ambient temperature: 0°C to 40°C / Ambient relative humidity: 10%RH to 85%RH No condensation; | |
| Environment | |
| Altitude: -300m ~ 3000m | |
| Overvoltage power supply, undervoltage power supply; Overheat alarm: If the drive overheats beyond | |
| Fault alarm | the internal set temperature, an alarm will be triggered. Locked rotor alarm: The locked rotor threshold |
| can be set through parameters (closed-loop support) | |
| Features | Fault Diagnosis, Fault Reset, Soft Limit, Parameter Identification, Adjustable Parameters, Gain Switching. |
| Resonance Suppression, Low-Frequency Suppression, Parameter Save Settings, Oncable Upgrade |
Engineering data

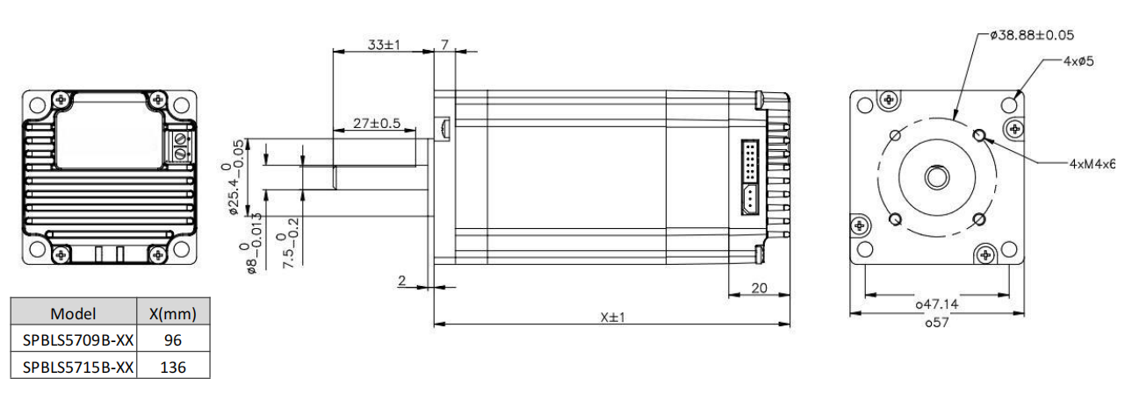

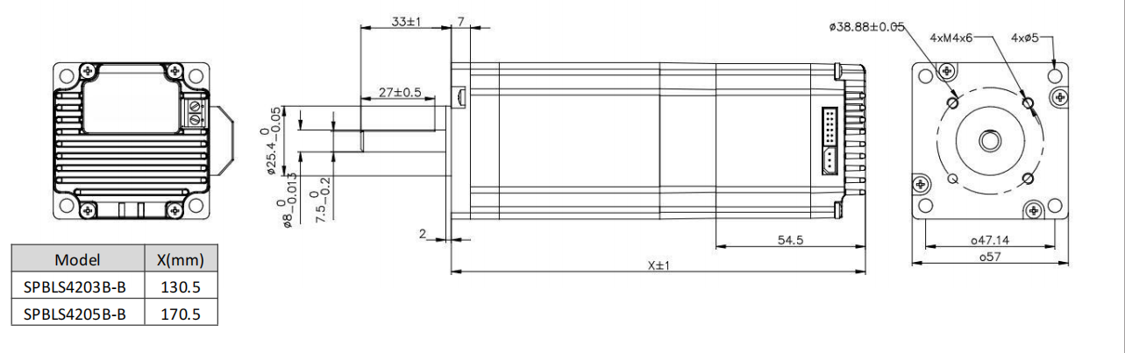

Model Specifications
| Model | Ratedpower | Holdingtorque | RatedCurrent | Inertia | Brake | Length | Weight |
|---|---|---|---|---|---|---|---|
| SPBLS5709B | 90 W | 0.3 N-m | 5A | 2.8kg-m2x10-6 | NO | 96mm | 0.89kg |
| SPBLS5715B | 150W | 0.48N-m | 7.2A | 4.3kg-m2x10-6 | NO | 136mm | 1.49kg |
| SPBLS5709B-B | 90 W | 0.3 N-m | 5A | 2.8kg-m2x10-6 | YES | 130.5mm | 1.25kg |
| SPBLS5715B-B | 150W | 0.48 N-m | 7.2A | 4.3kg-m2x10-6 | YES | 170.5mm | 1.86kg |
Always confirm the final operating point and installation conditions with Spotlight Motor engineering support.
System integration
Simplify distributed machine-axis design
Use the original drawings and technical sheets to confirm supply, I/O, communication and mechanical interfaces.
- Match rated torque and speed to the duty cycle
- Plan power, I/O and communication connections
- Confirm mounting geometry and thermal conditions
Application fields
Designed for compact industrial automation
A strong fit for machinery that needs precise motion without a large cabinet footprint.
Packaging machinery
Indexing, feeding and synchronized auxiliary axes.
Electronics assembly
Placement, transfer and process motion.
Inspection systems
Camera, sensor and measurement positioning.
Compact robotics
Distributed joints and lightweight axes.
Discuss your SPBLS57 requirement with our engineers.
Share your load, speed, duty cycle, controller and installation requirements for model selection and integration support.
