SP34IP290 Standard Stepper Motor
Standard Stepper Motor (NEMA 8~34)
Precision stepper motor engineered for dependable positioning, stable holding torque and straightforward integration in automation equipment.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data
Dependable incremental motion
Reliable positioning for compact machine axes
A practical stepper platform that combines predictable motion behavior with clear model-specific technical documentation.
Stable holding torque
Maintains position at standstill when correctly sized and driven.
Flexible integration
Multiple frame sizes and windings support custom machine requirements.
Engineering information
Technical data
Original model-specific ratings, dimensions, curves and connection information are preserved below for engineering review.
Engineering data
Technical Specifications 1
| Specification | Value |
|---|---|
| Phase count | 2 |
| Basic step angle | 1.80 |
| Basic step angle error (empty load) | Less than ±0.09° |
| Rotor moment of inertia. | 1.8 kg·cm² |
| Mass | 2.1 kg |
| Radial oscillation (maximum) | 0.025 mm (load of 450 g) |
| Axial runout (maximum) | 0.075 mm (load: 920 g) |
| Nominal operating condition | continuous |
| Insulation resistance to voltage | 500 V AC for 1 minute |
| Insulation resistance | 100MΩ |
| Insulation class | B |
| Temperature rise | Under 80K. |
| Service life | Over 5,000 |
| Operating temperature range | 0°C to +50°C |
| Operating humidity range | 20%RH-90%RH |
| Storage temperature range | -20°C to +70°C |
| Storage humidity range | 15%RH-95%RH |
| Water-resistant rating | IP65 |
Engineering data
Technical Specifications 2

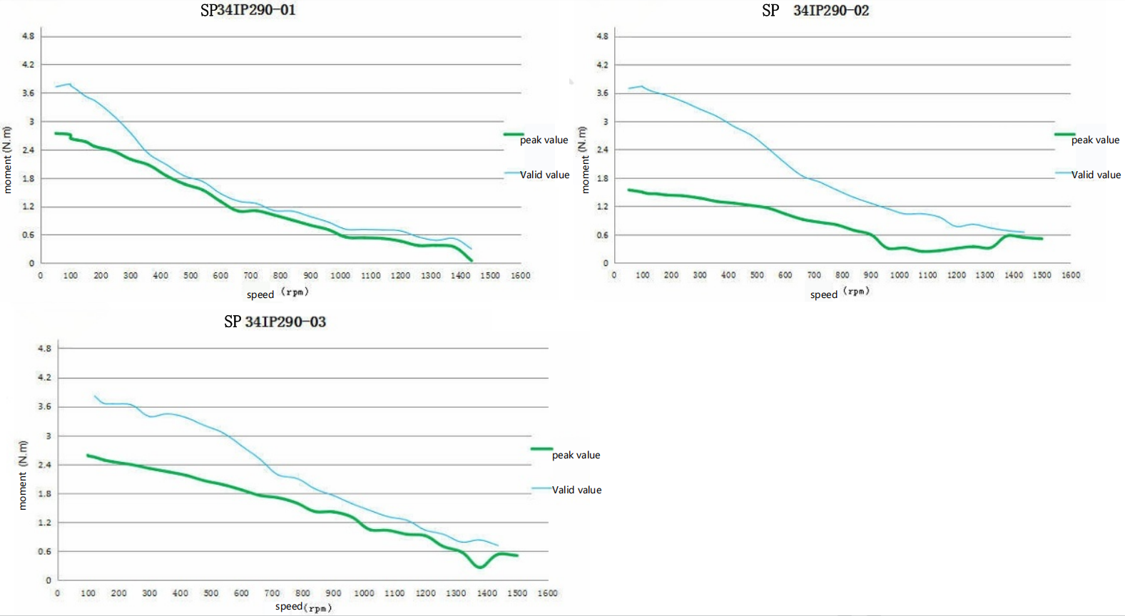

| Motor model | Current (A) | Torque capacity (N·m) | Resistance / (Ω) | Inductance (mH) | Body length (mm) |
|---|---|---|---|---|---|
| SP34IP290-01 | 3.0 | 4.5 | 1.250±10% | 7.5mH±20% | 87.8 |
| SP34IP290-02 | 4.5 | 4.5 | 0.570±10% | 4.2mH±20% | 87.8 |
| SP34IP290-03 | 6.0 | 4.5 | 0.340±10% | 2.4mH±20% | 87.8 |
Always confirm the final operating point and installation conditions with Spotlight Motor engineering support.
System integration
Straightforward drive and mechanical integration

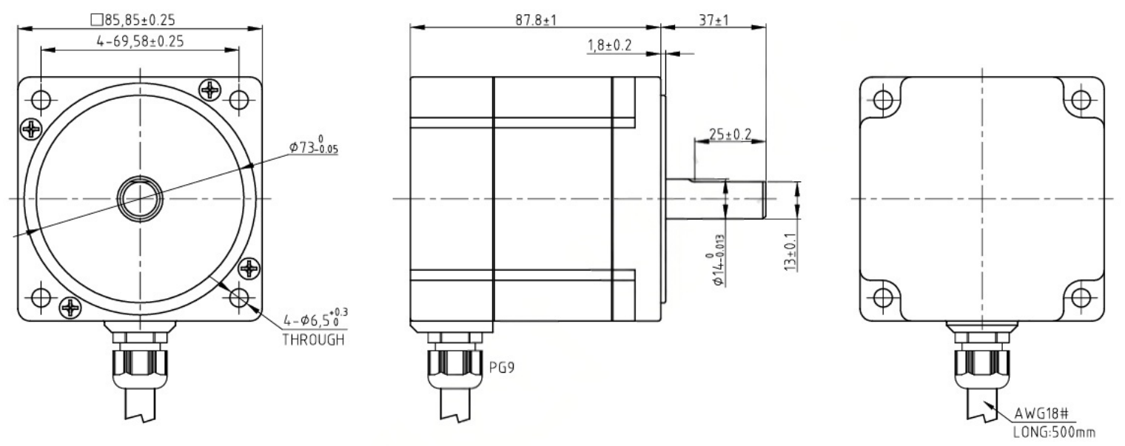

Use the original rated data, performance curves and drawings to select the drive current, mounting and motion profile.
