Reliable positioning
Controlled step motion supports repeatable indexing and stable holding behavior.
SP23IP270 Integrated Stepper Motor
Integrated Stepper Motor (NEMA 8~34)
Integrated stepper motor solution combining compact motion control, simplified wiring and dependable positioning for automation systems.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data
Compact integrated positioning
Stepper motion and control in a simplified machine architecture
An integrated platform that reduces external hardware while keeping product-specific electrical and mechanical data clearly available.
Simplified wiring
Integrated electronics reduce the number of separate cabinet components and interconnects.
Compact installation
A self-contained format supports distributed axes and restricted machine envelopes.
Engineering information
Technical data

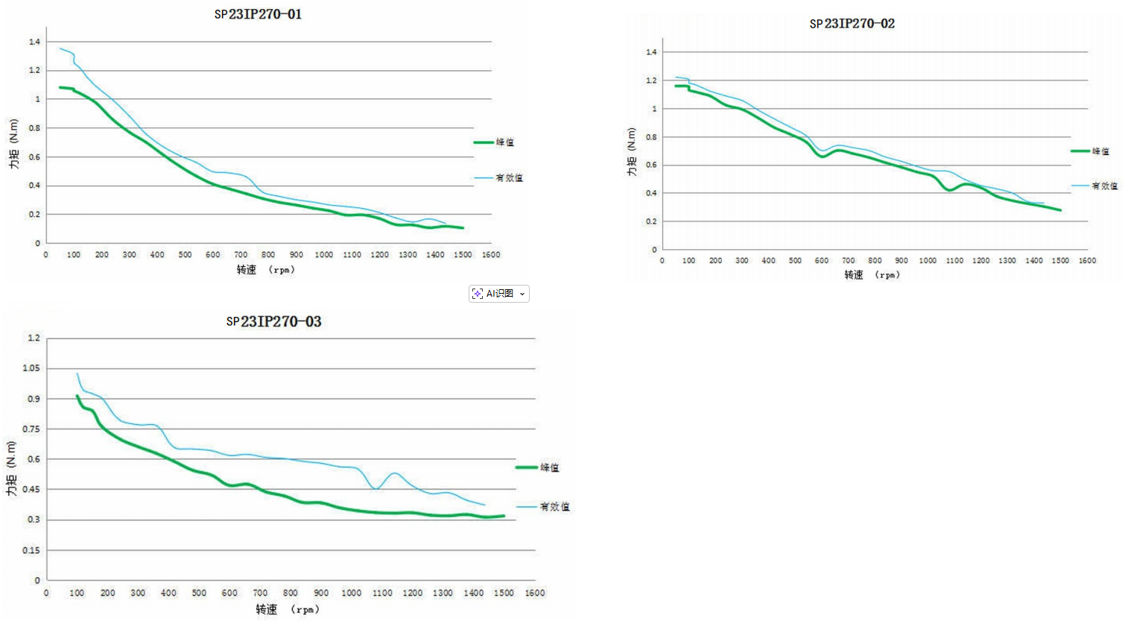

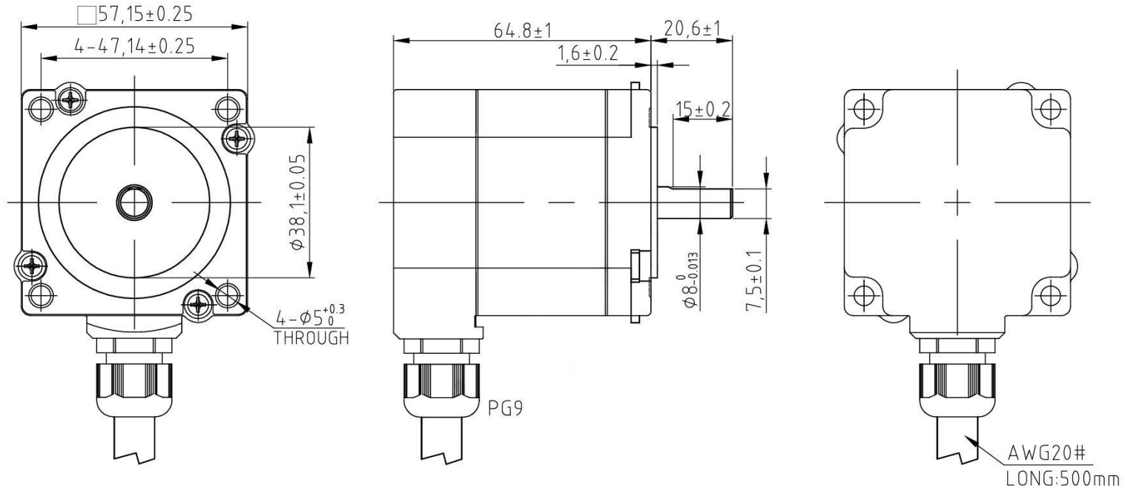

Original model-specific ratings, dimensions, curves and connection information are preserved below for engineering review.
Always confirm the final operating point and installation conditions with Spotlight Motor engineering support.
System integration
Faster integration for distributed machine axes
Review the original technical information below when planning supply, I/O, communication, mounting and load conditions.
- Match current, voltage and motion profile to the model data
- Confirm mounting, shaft and envelope dimensions
- Plan controller, I/O and machine wiring interfaces
Application fields
Straightforward motion for compact automation
Suited to repeatable positioning tasks that benefit from simplified control and compact integration.
Machine automation
Indexing, feeding and auxiliary positioning axes.
Laboratory instruments
Sample handling and compact analytical mechanisms.
Inspection equipment
Sensor, camera and fixture adjustment.
Light robotics
End effectors and distributed positioning modules.
Discuss your SP23IP270 requirement with our engineers.
Share your load, speed, duty cycle, controller and installation requirements for model selection and integration support.
Contact us
