Direct linear output
Converts motor rotation into controlled linear travel.
14 Series Hybrid Lead Screw Stepper Motor
Linear Actuator (Sliding Screw/Ball Screw)
Compact linear motion actuator combining motor and precision screw transmission for repeatable positioning in automation equipment.
Positioning accuracy
High torsional rigidity and constant torsional backlash over the entire gearbox service life ensure consistently high performance
Compactness
High torque density thanks to high performance and short design
Low maintenance
Highest quality standards for a long service life and extended maintenance intervals
Technical data
Integrated linear motion
Motor and precision screw drive in one compact unit
An integrated actuator platform that simplifies linear-axis design while preserving model-specific performance data.
Repeatable positioning
Precision screw guidance supports accurate automation motion.
Compact integration
Reduces component count and simplifies mounting.
Engineering information
Technical data
Original model-specific ratings, dimensions, curves and connection information are preserved below for engineering review.
Engineering data

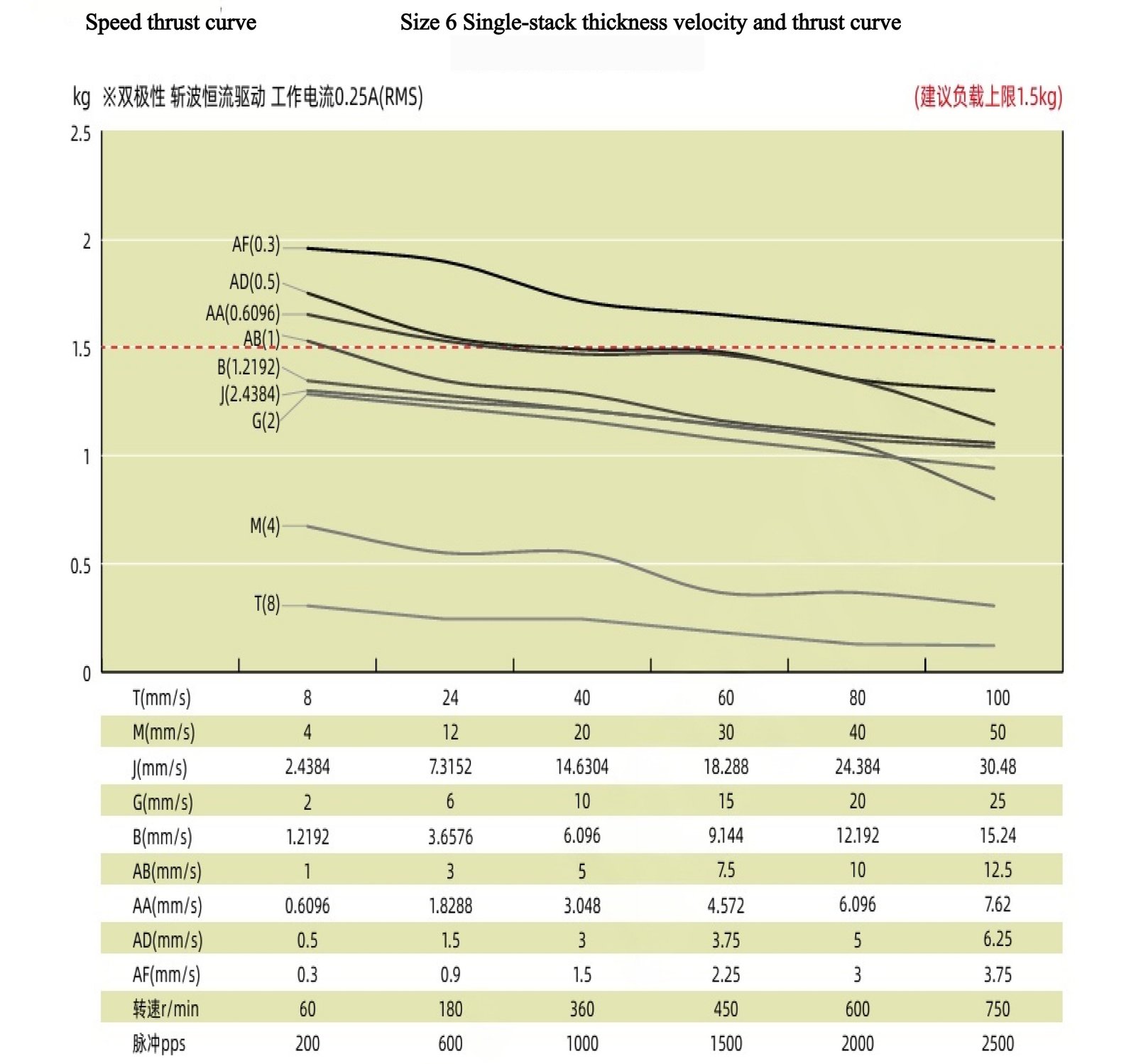

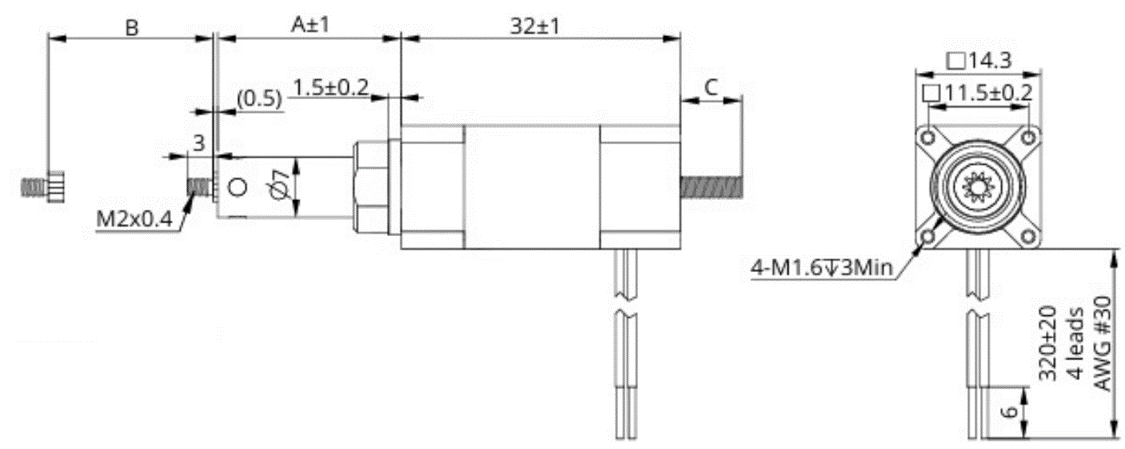

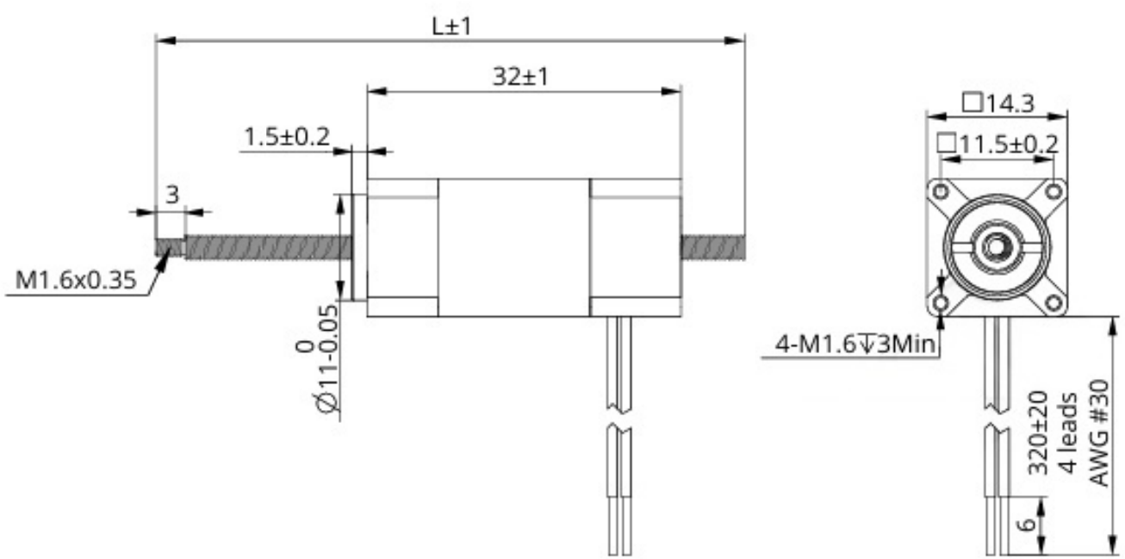

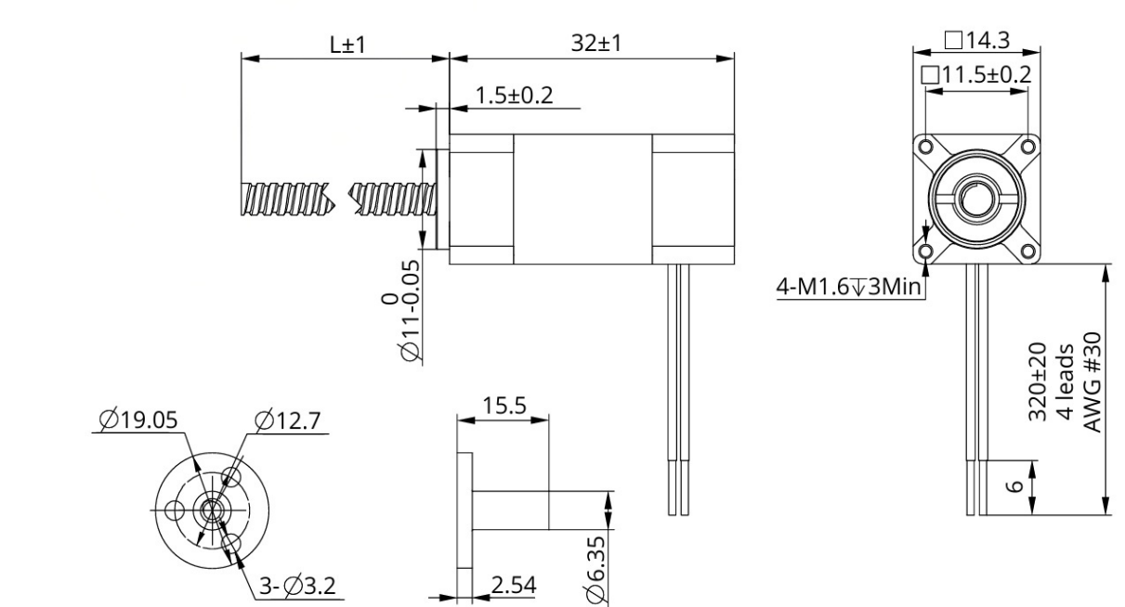

Technical Specifications 1
| Dimension A(mm) | StrokeB(mm) | DimensionC(mm) |
|---|---|---|
| 6 | 5 | 中 |
| 11 | 10 | |
| 16 | 15 | 2 |
| 21 | 20 | 7 |
Engineering data
Technical Specifications 2
| Electric | Relative | phase | phase | phase | motor | Numberof | Motor |
|---|---|---|---|---|---|---|---|
| Electric | |||||||
| machine | current(A) | resistance(Ω) | inductance(mH) | weight(g) | leads | length(mm) | |
| pressure(V) | |||||||
| 6-2103 | 6.6 | 0.25 | 22 | 4.5 | 60 | 4 | 32 |
Engineering data
Technical Specifications 3
| LeadScrew | LeadScrew | ||||
|---|---|---|---|---|---|
| Diameter(inch) | Diameter（mm) | Lead(inch) | Lead(mm) | progresscode | Steplength@1.8°(mm)* |
| 0.098/0.138 | 2.5/3.24 | 0.0394 | 1 | AB* | 0.005 |
| 0.118 | 3 | 0.0197 | 0.5 | AD | 0.0025 |
| 0.138 | 3.5 | 0.0118 | 0.3 | AF | 0.0015 |
| 0.138 | 3.5 | 0.024 | 0.6096 | AA | 0.003048 |
| 0.138 | 3.5 | 0.048 | 1.2192 | B | 0.006096 |
| 0.138 | 3.5 | 0.0787 | 2 | G | 0.01 |
| 0.138 | 3.5 | 960'0 | 2.4384 | 一 | 0.0122 |
| 0.138 | 3.5 | 0.1575 | 4 | M | 0.02 |
| 0.138 | 3.5 | 0.315 | 8 | T | 0.04 |
Always confirm the final operating point and installation conditions with Spotlight Motor engineering support.
System integration
Build compact linear axes with fewer interfaces
Use the supplied load, travel and dimensional data to select screw option, mounting and motion profile.
- Confirm stroke, lead and installation length
- Match axial load and speed to the duty cycle
- Plan guidance, alignment and end limits
Application fields
Flexible linear positioning for modern automation
Suitable for equipment that needs compact, repeatable and easily integrated linear motion.
Pick and place
Compact transfer and indexing mechanisms.
Dispensing systems
Controlled travel for dosing and filling.
Inspection equipment
Camera and sensor positioning axes.
Laboratory automation
Sample movement and analytical mechanisms.
Discuss your 14 Series Hybrid Ball Screw Stepper Motors requirement with our engineers.
Share your load, speed, duty cycle, controller and installation requirements for model selection and integration support.
Contact us
Would you like to learn more about our solutions?
We would be happy to advise you—personally, competently, and tailored to your requirements.
Perfection in a new dimension
Further Information
Short delivery times available for selected product configurations.

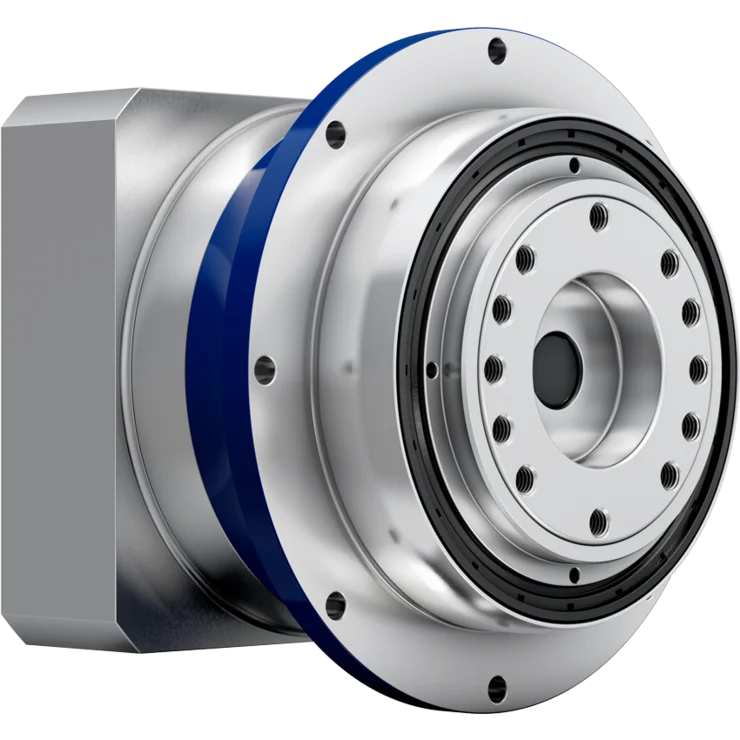

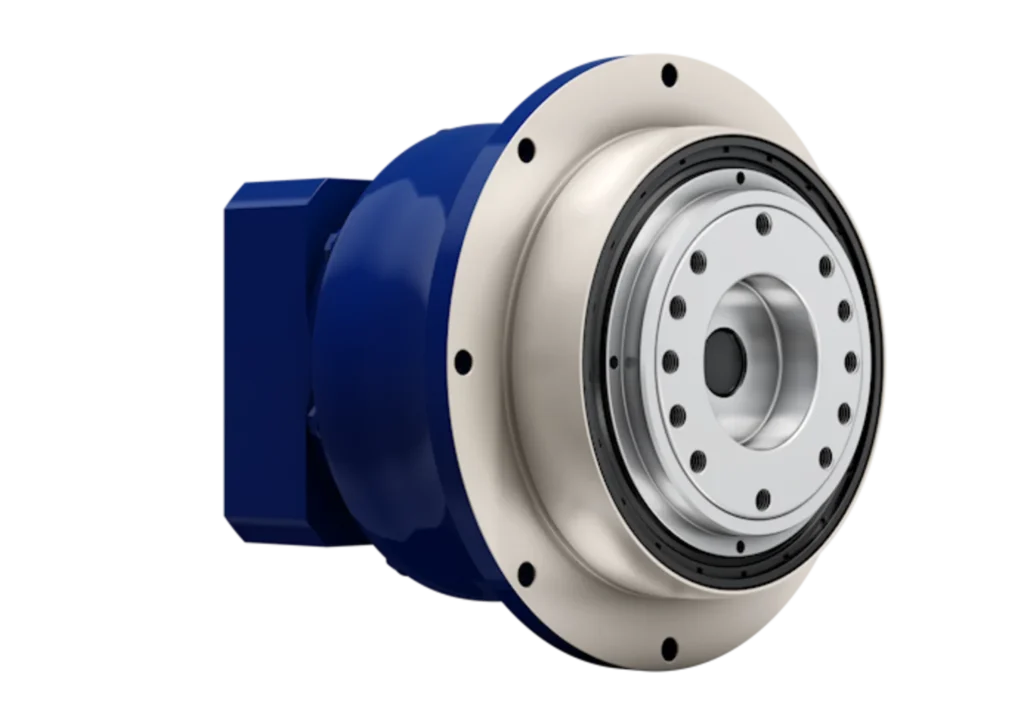

The TP+ HIGH TORQUE enables maximum torque density and maximum torsional rigidity—ideal for demanding applications with dynamic load changes and high positioning accuracy.
alpha Advanced Line gearboxes with increased durability and food-grade lubrication available.

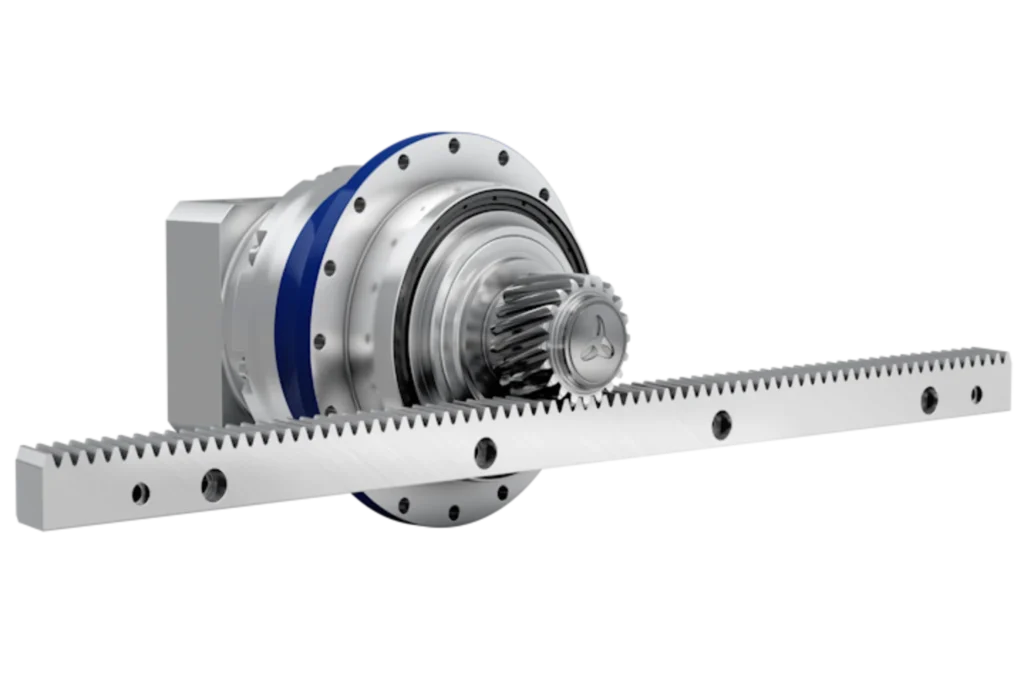

The TP+ for coordinated pinion-rack systems for medium to high requirements. Typical areas of application in wood, plastic, and composite processing, in machining centers, or in automation.

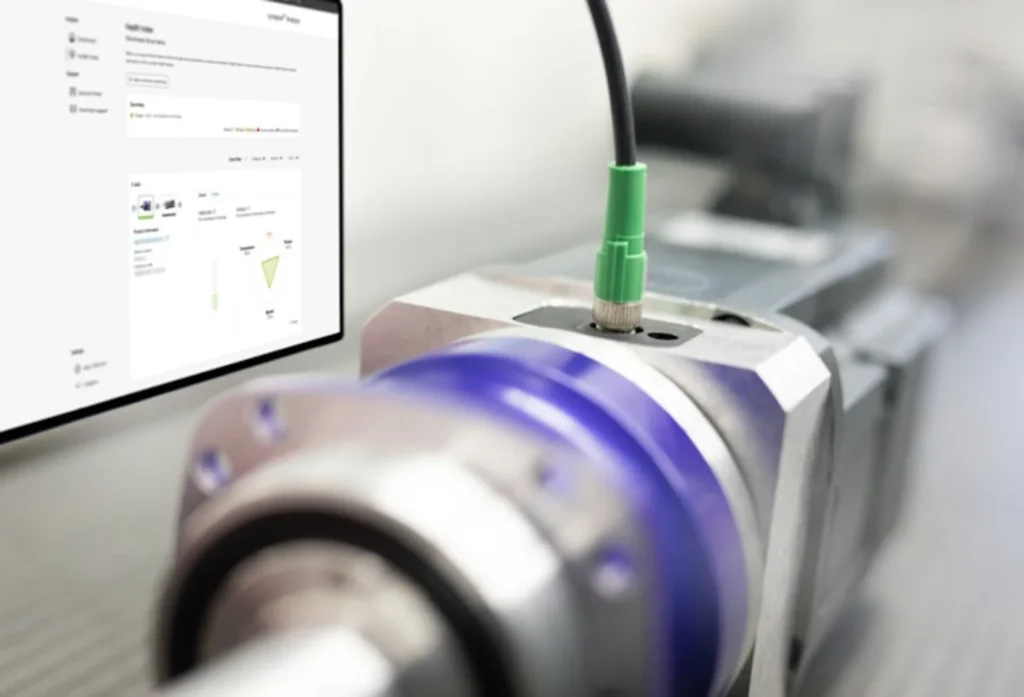

With cynapse® and smart services, you can unleash the full potential of your drive system: sensor data is processed, visualized, and analyzed intelligently. Find out how the combination of gearboxes with cynapse® and our Smart Services can make your digital production faster, safer, and more efficient.
Related products
相关产品
-
Linear Actuator (Sliding Screw/Ball Screw)
28 Series Hybrid Lead Screw Stepper Motor
-
Linear Actuator (Sliding Screw/Ball Screw)
42 Series Hybrid Ball Screw Stepper Motor
-
Linear Actuator (Sliding Screw/Ball Screw)
35 Series Hybrid Ball Screw Stepper Motor
-
Linear Actuator (Sliding Screw/Ball Screw)

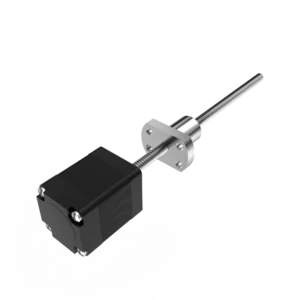

20 Series Hybrid Ball Screw Stepper Motor
